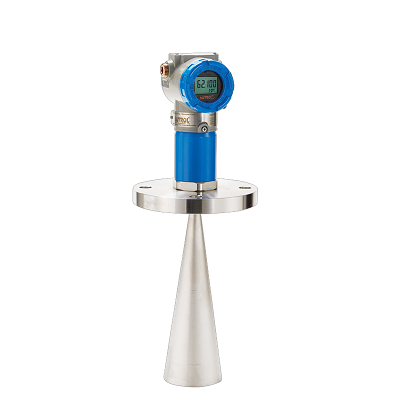

Autrol ALT6210-H Radar Level Transmitter (0.5 - 30m)

Type: Non Contacted type Level Transmitter
Feature: Horn ANT 2 ~ 4 inch, SEAL ANT 3, 4 inch, Encapsule ANT, Parabolic ANT
Range: 0.5 to 30m (Optional 70 meter)
Accuracy: ± 3 mm
Process Pressure: Max 20 bar
Technology: Time Domain Refletometry(TDR) by Guided Wave Radar 26 GHz
Applicable condition: Swell, Wave, Noise, High Viscosity, Foam

Protocol: 4-20mA, Digital Communication, HART 7
Trim ability: Zero, DAC, FULL
Power supply & Load Requirement: 250 to 360 ohm @ 24 Vdc, Loop Powered
Falure Mode: Low ≤ 3.78 mA, High ≥ 21.1 mA
External Buttons: Zero & Span 2 buttons for device configuration
Process Temp. limit: -40 to 80℃
Certificate: CE, Rohs, IP66/67
