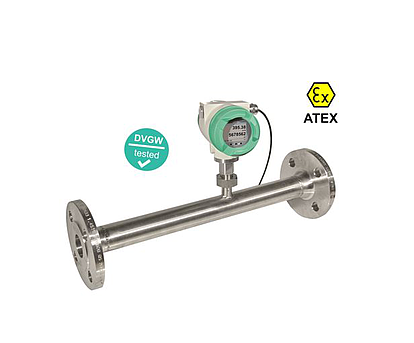

CS Instruments VA 570 Flow Sensor with Integrated Measuring Section
Manufacturer: CS Instruments Model: VA 570 Origin: Germany - Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Measurement: volume, flow, consumption
flow rate, temperature
Measurement principle: Heat flow sensor
Average temperature: -40 ... 180 ° C Probe (ATEX version -20 ° C ... 120 ° C)
Operating Temperature: -20 ... 70 ° C
Operating pressure: 50 bar
Power supply: 18 ... 36 VDC
Power consumption: up to 5W
Output: Modbus RTU (EIA / TIA-485 compliant)
2 x 4 ... 20 mA
Optional: Modbus TCP, HART, ProfibusDP, Profi Net,
Accuracy: ± 1,5% m.v. ± 0.3% f.s. (Standard version)
Accuracy: ± 1.0% m.V. ± 0.3% f.s. (Exact version)
Response time: t90 <3 seconds
Display: 2 "TFT color display (320 x 240)
Fiberglass: G 1/2 "ISO 228, NPT 1/2", R 1/2 ", PT 1/2"
Protection class IP67
