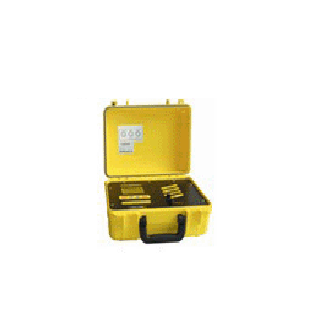

Dynaflox DMDFP Portable Doppler Ultrasonic Flow Meter
Manufacturer: Dynaflox Model: DMDFP Series - Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Accuracy: 0.5%~2.0 % F.S
Flow velocity range: 0.05 m/s~12m/s
Transmitter
Enclosure: NEMA4 x [IP65], ABS
Dimension: 358Lx250Wx150H mm
Power supply: std 100~240VAC.opt 12~28VDC
Display: 2x8 LCD
Output: 4-20mA
Temp.: -40 + 70 C
Transducer
Measuring range: 0.05 m/s ~ 12m/s
Type: Insertion
Liquid temp.: Std: -40+121C. Opt: -40+250 C
Cable length: std : 6m . Opt: 300m
Housing material:
Std : Aluminum
K-type: Engineering Plastic
High temp: Engineering Plastic
Stainless steel: Stainless steel
Protection class: Std: IP65. Opt: IP68
Features
The system can be field configured to pipe sizes ranging from 15 to 4000mm.
For dirty liquids, a certain amount of air bubbles or suspended solids contain
Excellent low flow rate measurement ability, low to 0.05 m/s
A wide range of flow measurement, high flow rate can reach 12m/s
Automatically signal gain adjustment
Do not need to shut down the pipe flow when installing the transducers.
User-friendly configurations
4-20mA, totalizer pulse and relay alarm output
Accuracy: 2.0% Calibrated span
weight about 7 Kg
Contains lithium battery, can work up to 50 or more hours
Applications
Raw sewage
Return activated sludge
Waste activated sludge
Ground water
Pulp and paper slurries
Chemical slurries
Drainage
Mining recirculation
Animal renderings
One standard set of product includes: portable bag, portable transmitter, standard temperature/pipe transducers,
couplant, stainless steel belt, elastic belt, charger, 4-20mA output cable terminals etc..
