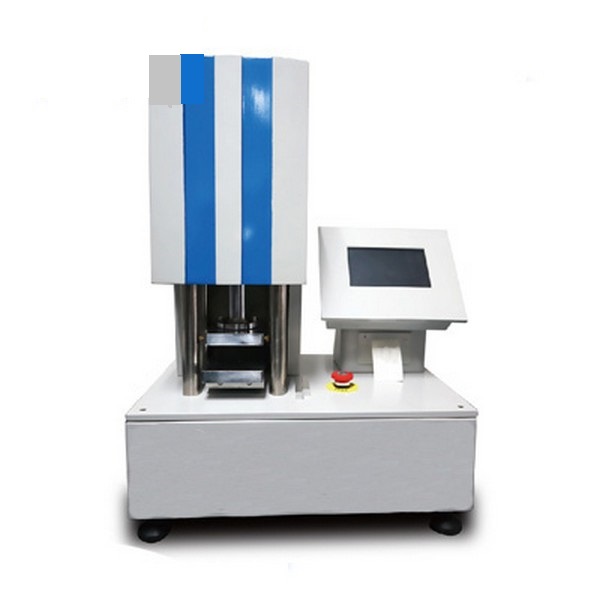

HAIDA HD-A513-3 Universal Testing Machine For Paper Products (200Kg, 1/250.000)

The main technical parameters are as follows:
Capacity (Optional): 10, 20, 50, 100, 200 kg
Resolution: 1/250,000
Precision: < 0.25%
Operation Mode: Computer
Display Mode: LCD
Platen: 100×100 mm or depending on the diameter of the flat crush sample
Compressed Space: 500 mm
Platen Parallelism: ± 0.05 mm
Ring Crush Sample: 152×12.7 mm
Edge Crush Sample: 25×100 mm
Test Speed: 12.7 mm/min
Dimension (L×W×H): 1020×510×1060 mm
Weight: Approx. 51 kg
Power: AC220V, 1.5A

Details

Specifications
1.can do a full range of testing
2.multi-functional equipment
3.Tension and compressive tester

Universal testing machine can do a full range of testing, which includes Ring Crush Testing, Flat Crush testing, Edge Compressive Testing, Adhensive Strength Testing and other general compression tests, to a variety of materials like paper, packaging materials, etc. It is a multi-functional testing equipment.
