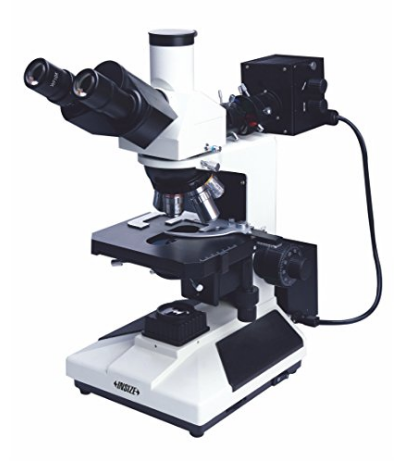

INSIZE ISM-M600-P METALLURGICAL MICROSCOPE

Eyepiece(wide field): 10X(view field: Ø18mm)
Objective(plan achromatic): 5X
Numerical aperture: 0.12
Working distance: 18.4mm
Stage : double layer/ Size: 160x140mm/ Travel: 75x50mm
Pupil distance: 53-75mm(adjustable)
Diopter adjustment : ±5 diopter(one eyepiece)
Illumination: 6V/20W halogen lamp
Dimension(L×W×H) : 450×300×350mm
Weight: 11kg

Details

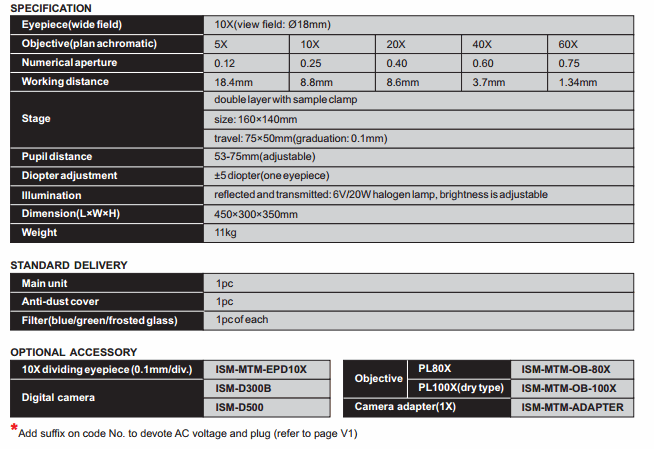

Datasheet
