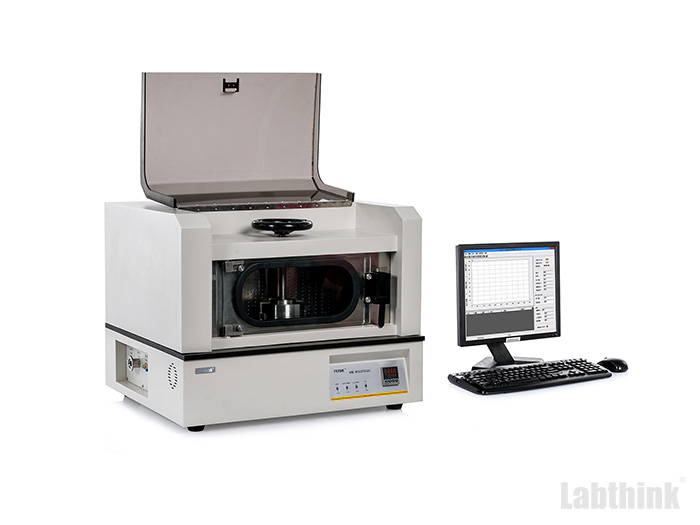

Labthink VAC-V1 Gas Permeability Tester

Test Range:

- 0.1~100,000 cm3/m2•24h•0.1MPa (standard volume)

- At least 600,000 cm3/m2•24h•0.1MPa (extended volume)

Number of Specimens: 1

Vacuum Resolution: 0.1 Pa

Vacuum Degree of Test Chamber: <20 Pa

Temperature: Room temperature~50°C

Accuracy: ±0.1°C

Specimen Size: Φ97 mm

Test Area: 38.48 cm2 (Φ70 mm)

Test Gas: O2, N2 and CO2 (outside of supply scope)

Test Pressure: -0.1 MPa~+0.1 MPa (standard)

Gas Supply Pressure: 0.4 MPa~0.6 MPa

Port Size: Φ6 mm PU Tubing

Instrument Dimension: 680 mm (L) x 565 mm (W) x 550 mm (H)

Power Supply: 220VAC 50Hz / 120VAC 60Hz

Net Weight: 130 kg

Details

Datasheet
