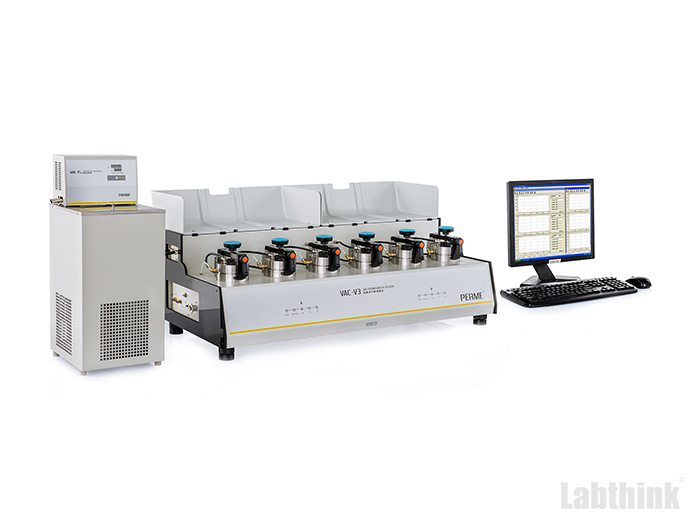

Labthink VAC-V3 Gas Permeability Tester

Specifications Film Test

Test Range:

- 0.1~50,000 cm3/m2•24h•0.1MPa (Standard volume for group A)

- 1.0~500,000 cm3/m2•24h•0.1MPa (Extended volume for group A)

- 0.01~1,000 cm3/m2•24h•0.1MPa (Group B)

Number of Specimens: 6 pieces with independent test results (group A and group B, each with 3 pieces)

Vacuum Resolution:

- Group A 0.1 Pa

- Group B 0.01 Pa

Vacuum Degree of Test Chamber: <20 Pa

Temperature: 5°C ~ 95°C

Accuracy: ±0.1°C

Specimen Size: Φ97 mm

Test Area: 38.48 cm2

Test Gas: O2, N2 and CO2 (outside of supply scope)

Test Pressure: -0.1MPa ~ +0.1MPa

Gas Supply Pressure: 0.4MPa ~ 0.6MPa

Port Size: Φ6 mm PU Tubing

Instrument Dimension: 1370 mm (L) x 575 mm (W) x 450 mm (H)

Power Supply: 220VAC 50Hz / 120VAC 60Hz

Net Weight: 160 kg
