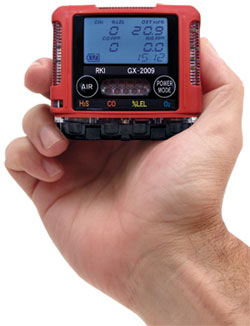

Riken Keiki GX-2009 Smallest Four Gas Confined Space Monitor

Gas Detected
All Combustible Gases (Methane as standard)
Oxygen (O2)
Hydrogen Sulfide
(H2S)
Carbon Monoxide
(CO)
Detection Principle Catalytic combustion Galvanic cell Electrochemical cell
Detection Range 0~100% LEL 0~40.0% Vol.
(0.1% Vol.)
0~100 ppm (0.5 ppm) 0~500 ppm (1 ppm)
Accuracy Statement
(whichever is greater)
± 5% of reading or ± 2% LEL ± 0.5% O2 ± 5% of reading or ± 2 ppm H2S ± 5% of reading or ± 5 ppm CO
Sampling Method Diffusion sampling standard / hand aspirator or motorized pump optional
Display Digital LCD displays all four gases simultaneously, with auto backlight
Alarm Method
Gas alarms: 1st and 2nd (user adjustable), STEL, TWA and OVER
Trouble alarms: Sensor connection, low battery, low flow, circuit trouble and calibration error
Types of Alarms
Gas Alarm: 2 increasing alarms, STEL, TWA, overscale alarm
Trouble alarm: Sensor disconnection, wire disconnection, low battery, circuit error, calibration range error
Operating Temp. & Humidity -4°F to 122°F (-20°C ~ +50°C), 0 to 95% RH, non-condensing (splash resistant)
Response Time Within 30 seconds (T90)
Continuous Operation 20 hours after a 3 hour full charge (14 hours after 90 min charge)
Power Source Direct charging NiMH batteries, set of 2
Safety Design IECEx zone 0 Ex ia IIC T4; ATEX II 1G Ex ia IIC T4;
CSA classified, “C/US”, as intrinsically safe. Class I, Division 1, Groups A, B, C, D
Dimensions & Weight 2.7” H x 3” W x 1” D (Approx. 70 H x 75 W x 25 D mm), 4.6 ounces (approx. 130g)
Case Material RFI shielded high impact over molded rubber. Dust and water-resistant with IP-67 approval.
Controls Two glow in the dark buttons: POWER / MODE, AIR
Required Accessories Battery charger
Standard Accessories
Battery charger, Alligator clip, NiMH batteries (set of 2)
Optional Accessories
  • Belt Clip
  • Padded carrying case for GX-2009 and accessories
  • Charging station, 115/220 VAC powered for 2, 3, 4, or 5 instruments
  • Charging station with 12 VDC power supply and vehicle adapter plug
  • 12 VDC adapter with vehicle plug (does not include charger base)
  • RP-6 sample drawing pump with 10’ hose and probe
  • Hand aspirated sample draw with 10’ hose and probe
Configurations 4 gas (LEL / O2 / H2S / CO), 3 gas (LEL / O2 / H2S), 3 gas (LEL / O2 / CO),
2 gas (LEL / O2), 2 gas (O2 / H2S), 2 gas (O2 / CO)
Warranty
Two years material and workmanship
Details

Manual

Datasheet

Specifications subject to change without notice.

GX-2009 Callouts
5 unit charger for GX-2009
Optional multi-charger available.

Download Product Datasheet (200KB PDF) click here
