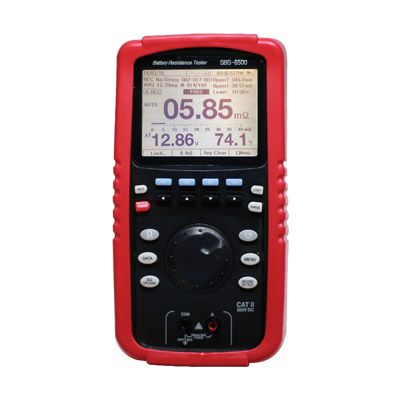

SBS-6500 Internal Resistance Tester

Size and Weight: 4.2inch W x 2.2inch D x 8.3inch H; 2.6 lbs.
Storage: 7,500,000 records
Ah Measurement Range: 5 - 6000Ah, 0 to 100 Vdc
Voltage Measurement: Resolution: 0.001V
Accuracy: ±0.1%
Resistance Measurement: Range: 1 mΩ to 400Ω
Resolution: 0.001 mΩ
Accuracy: ±1.0%
Display: 3.8inch LCD, 320 x 240 backlit screen
User Programmable: Alarms, Setpoints, Site names, Battery models
Communication Interface: USB, Bluetooth w/ SBS-2003
Software: SBS-6500 Battery Management Software
Software Format: MS Windows
Built-in Battery: Rechargeable NiMH battery pack
Operation Time: 8 hours
Operation Temperature: 14° F to 122° F

Details

  SBS-6500 Data Sheet

SBS-6500 Users Manual

 Features

Tests flooded lead-acid, VRLA, Ni-Cad, Li-ion & NiMH batteries

Voltage testing range is 0–100Vdc

IEC 6101-1 CAT II 300V Safety Standard

Built-in rechargeable NiMH battery

Automatically measures and stores data

Software package

Functions

Communicates to PC through USB port

Storage battery resistance testing: automatically switches within the test range 1 mΩ to 400 mΩ and resistance measurement resolution reaches 1 mΩ

Resistance test each connection in under 5 seconds

Test results are compared to preset, user-defined alarm and set point values

Generates and displays the battery string’s single cell test report and comparison data

On-screen pass / warning / fail indication during testing based on set parameters

Can view all historical data on handheld unit

Battery Management Software (Included)

Analyzes battery function and efficiency

Interface for loading string and alarm data to and from tester

Direct export into Excel format for easy incorporation into custom reports

Separate data archives for cell, battery, intercell connector resistance records and specific gravity

Self interpretation of data for clear, concise comparisons

Graphs cell trends; creates battery analysis and reports
