Terasic Video and Embedded Evaluation Kit - Multi-touch
Manufacturer: Terasic Model: Video and Embedded Evaluation Kit - Multi-touch - Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Cyclone IV EP4CE115 FPGA
114,480 logic elements (LEs)
432 M9K memory blocks
3,888 Embedded memory (Kbits)
266 Embedded 18 x 18 multipliers
4 General-purpose PLLs
528 User I/Os
Configuration
EPCS64 serial configuration device
On-board USB-Blaster circuitry
JTAG and AS mode configuration supported
Memory Devices
128MB SDRAM
2MB SRAM
8MB FLASH with 8-bit mode
32Kbit EEPROM
Switches and Indicators
18 switches and 4 Push-buttons
18 red and 9 green LEDs
Eight 7-segment displays
Audio
24-bit encoder/decoder (CODEC)
Line-in, line-out, and 3.5mm jacks
Character Display
16x2 LCD module
On-board Clocking Circuitry
Three 50MHz oscillator clock inputs
SMA connectors (external clock input/output)
SD Card Socket
Provides SPI and 4-bit SD mode for SD card access
Two Gigabit Ethernet Ports
Integrated 10/100/1000 Ethernet
172-pin High Speed Mezzanine Card (HSMC)
Extension for LCD and camera module
Configurable I/O standards (voltage levels: 3.3/2.5/1.8/1.5V)
USB Type A and B
Provides host and device controller compliant with USB 2.0
Support for data transfer at full-speed and low-speed
PC driver available
40-pin Expansion Port
Configurable I/O standards (voltage levels: 3.3/2.5/1.8/1.5V)
VGA-out Connector
VGA DAC (high speed triple DACs)
DB-9 Serial Connector
RS-232 port with flow control
PS/2 Connector
PS/2 connector for connecting a PS/2 mouse or keyboard
Remote Control
Infrared receiver module
TV-in Connector
TV decoder (NTSC/PAL/SECAM)
Power
12V DC input
Switching and step-down regulators LM3150MH
Capacitive LCD Multi-touch Screen
7-inch TFT LCD with pixel resolution of 800*480
16 million colors (8-bit RGB)
LED backlight
5-Megapixel Digital Image Sensor
2,592H x 1,944V active pixels with Bayer color arrangement
Programmable frame rate up to 70FPS (VGA)
Snapshot-mode mode to take frames on demand
Simple two-wire serial control interface
Digital Accelerometer
Up to 13-bit resolution at +/- 16g
SPI (3- and 4-wire) digital interface
Flexible interrupts modes
Ambient Light Sensor
Precise illumination measurement under diverse lighting conditions
Programmable interrupts
16-bit digital output with I2C fast-mode at 400 kHz
Programmable analog gain and Integration time
50/60Hz lighting ripple rejection

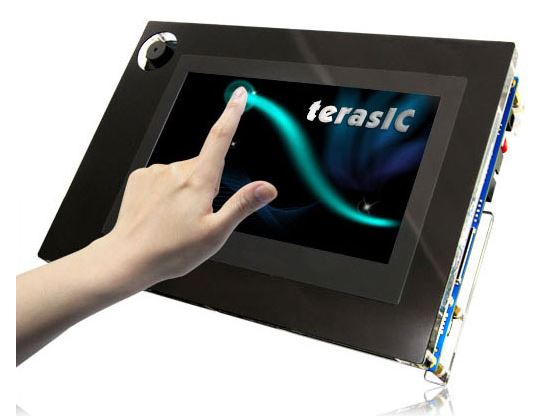

The Video and Embedded Evaluation Kit - Multi-touch (VEEK-MT) is a comprehensive design environment with everything embedded developers need to create processing-based systems. VEEK-MT delivers an integrated platform that includes hardware, design tools, intellectual property (IP) and reference designs for developing embedded software and hardware platform in a wide range of applications. The fully integrated kit allows developers to rapidly customize their processor and IP to best suit their specific application. The VEEK-MT features the DE2-115 development board targeting the Cyclone IV E FPGA, as well as a capacitive LCD multimedia color touch panel which natively supports multi-touch gestures. A 5-megapixel digital image sensor, ambient light sensor, and 3-axis accelerometer make up the rich feature-set.
