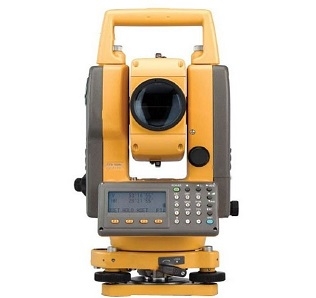

Total Station TOPCON GTS-102N, GTS-105N, GTS-100N Series
Manufacturer: TOPCON Model: GTS-102N, GTS-105N, GTS-100N Series - Request a Quotation
- Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Specifications Telescope Length 150 Millimeters Objective Lens Diameter 45mm (EDM:50mm) Magnification 30x Image Erect Field of View 1°30 Resolve Power 3 " Min. Focus Distance 1.3 meters Measurement Range 1 Prism 6500 ft, 2000 meters 3 Prism 8800 ft, 2700 meters Measuring Accuracy Prism Mode ±(2mm + 2ppm x D)m.s.e. fine, N/A measurement time 1mm: 1.2sec. (Initial 4sec.) fine, 0.2sec. (Initial 3sec.) coarse, N/A Angle Measurement Method Absolute Reading Detection 2 horizontal, 1 vertical Minimum reading N/A, 1/5 mgon Tilt Correction Type Single Axis Method Liquid surface reflective profile sensor reading type Compensating Range ±3" Correction Unit 1 arc sec, N/A Computer Unit Display 2 screen, dot matrix graphic LCD display Power Approximate battery life 9 including distance measurement, 40 Angle measurement only
