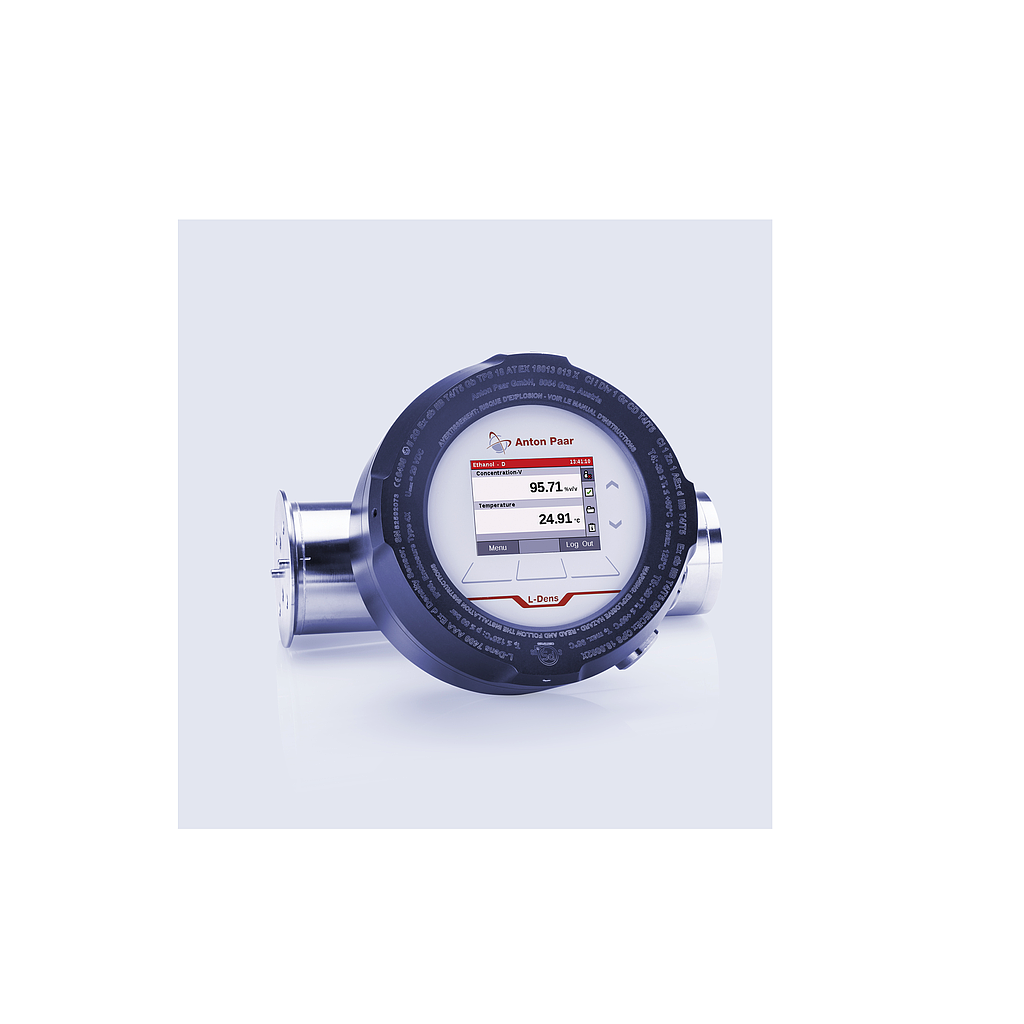

Anton Paar L-Dens 7400 インライン密度計 (3000 kg/m³, 0.1 kg/m³)
生産者: Anton Paar Model: L-Dens 7400 - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Measuring range: Max. 3,000 kg/m³
Accuracy in adjusted range: 0.1 kg/m³, Tantalum 0.5 kg/m³
Process temperature: -40°C to +125°C
CIP/SIP temperature and duration non-Ex version: 145 °C for max. 30 min
Ambient temperature: -40°C to +70°C
Process pressure absolute: Max. 50 bar (HP version max. 180 bar)
Material of the wetted parts: 1.4404, Alloy C-276, Incoloy 825, Tantalum
Communication: Can be combined with Pico 3000, Pico 3000 RC, mPDS 5, and Edge
Process connections: Adapter for inline, bypass, and tank installation
Flange: DIN/EN, ANSI, JIS, Tri-Clamp, VARIVENT® N, G 3/8”, Tube OD 12 mm, or 1/4”
U-tube inner diameter: 6.3 mm
Recommended flow rate: 100 L/h to 500 L/h
Degree of protection: IP 66 / 67 / NEMA 4X
Dimensions: 245 mm x 145 mm x 185 mm (Ex: 245 mm x 160 mm x 205 mm)
Standard adjustment range: 600 kg/m³ to 1,200 kg/m³
Weight: 4.8 kg
