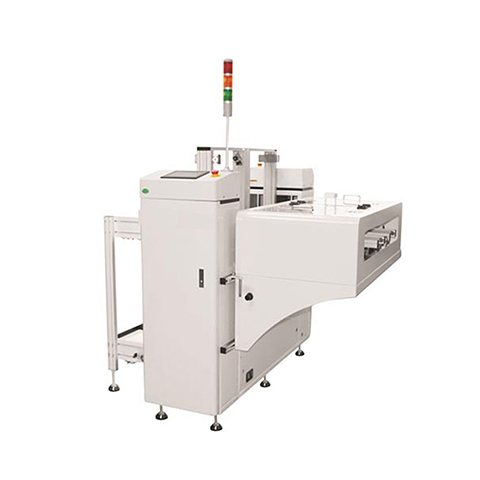

Censtar NL-LL-N NG/OK アンローダー (2330*1810*1250, 50*50-530*390)
生産者: Censtar Model: NL-LL-N - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Dimension（mm）:2330*1810*1250
PCB size(mm): 50*50-530*390
Magazine（mm): 535*460*563
Magazine quantity: Up: 1: Down: 1
Mazagine change: Approx. 30 Seconds or specity
Indexing pitch: 10. 20. 30. 40mm selectable
Power supply: AC 220V±10V, 50/60HZ
Power: Max 300VA
Air pressure: 4-6bar
Air consumption: 10itr/min max
Transport height: 900±20(or custimzie)
PCB direction: L-R or R-L
Weight: 370kg
This equipment is used for the receiving operation of the PCB board of the SMT production line, and it is suitable for receiving the NG board and the OK board after the AOI behind the reflow.
Features
1.Panasonic PLC+Touch screen control , easy to operate.
2.Design with firm structure.
3.The upper and lower air clamps ensure the location of the material box accurately.
4.Special gas path design ensures that the PCB panel is not pushed.
5.With SMEMA signal.
