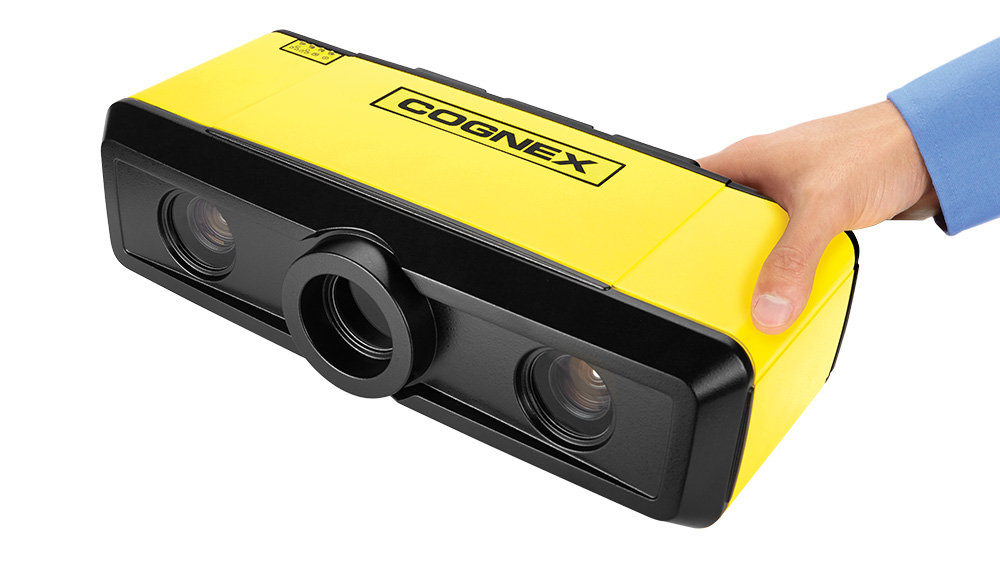

Cognex 3D-A5060 エリアスキャン3Dカメラ (400mm; 1400.0mm (CD))
生産者: Cognex Model: 3D-A5060 P/N: 3D-A5060 Standard - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Clearance Distance (CD): 1400.0mm
Measurement Range (MR): 400mm
Near FOV: 520 x 390 mm
Far FOV: 645 x 490 mm
Resolution XY: 361–454 µm
Resolution Z : 338–559 μm
Repeatability Z (σ): 100–150 µm
Dimensions: 324 x 137 x 97 mm
Weight: 3.0 kg
Operating Temperature: 0–40 °C (32–104 °F)
Storage Temperature: -10–60 °C (14–140 °F)
Operating Humidity :<85% (non-condensing)
Protection: IP65
Shock: 50 gs (11 ms half-sine pulse)
Vibration: 4 gs (10–120 Hz for 30 minutes)
Trigger
Trigger input voltage limits: 24 VDC
Input ON: >10 VDC (>6 mA)
Input OFF: <2 VDC (<1.5 mA)
Power Voltage: +24 VDC (22–26 VDC)
Current: 6.0 A max
Acquisition Time 200 msec
Software: VisionPro
Ethernet: 10 Gigabit Ethernet interface
Optional Accessories: Fan
