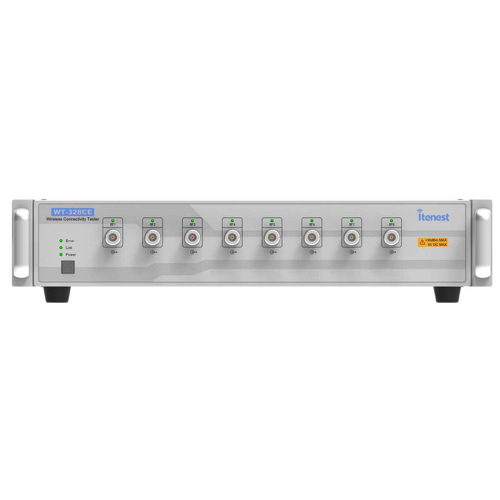

iTenest WT-328CE ワイヤレス接続テスター (400 ~ 7300 MHz, for Wi-Fi 6/6E)

Input/Output Frequency Range: 400 to 7300 MHz

IF Bandwidth: 180 MHz

Input Power Range: +30 dBm peak (+25 dBm average)

Output Power Range (CW): -8 dBm to -130 dBm

Output Power Range (CW, Broadcast): -23 dBm to -130 dBm

Input Power Accuracy:

Specification: ±0.5 dB (+25 dBm to -40 dBm)

Typical: ±0.3 dB (+25 dBm to -40 dBm)

Output Power Accuracy:

Specification: ±0.75 dB (-8 dBm to -90 dBm); ±1.50 dB (-90 dBm to -130 dBm)

Typical: ±0.5 dB (-8 dBm to -90 dBm); ±1.0 dB (-90 dBm to -130 dBm)

Output Power Accuracy (Broadcast):

Specification: ±1.0 dB (-23 dBm to -90 dBm); ±1.50 dB (-90 dBm to -130 dBm)

Typical: ±0.75 dB (-23 dBm to -90 dBm); ±1.0 dB (-90 dBm to -130 dBm)

EVM:

Residual Loopback EVM, Full Packet Channel Estimation, Typical: Power In/Out: -20 dBm; Averaged Over: 20 packets

Measured at 6825 MHz

802.11ax Waveform, 160 MHz, MCS 11

≤ - 47 dB

Input/Output Return Loss: >13 dB
