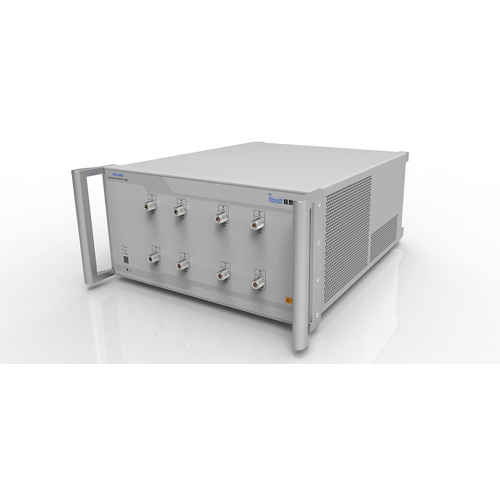

iTenest WT-428 ワイヤレス接続テスター (400 đến 7300 MHz; For Wi-Fi 7)
生産者: iTenest Model: WT-428 - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Input/Output Frequency Range: 400 to 7300 MHz
IF Bandwidth: 400 MHz
Input Power Range: +30 dBm peak (+25 dBm average)
Output Power Range (CW):
+5 dBm to -100 dBm (400 MHz to 6500 MHz)
0 dBm to -100 dBm (6500 MHz to 7300 MHz)
Input Power Accuracy:
SISO: ±0.3 dB (+25 to -40 dBm)
Combined: ±0.5 dB (+25 to -40 dBm)
Output Power Accuracy:
SISO: ±0.5 dB (+5 dBm to -90 dBm), ±1.0 dB (-90 dBm to -100 dBm)
Combined: ±0.5 dB (+5 dBm to -90 dBm), ±1.0 dB (-90 dBm to -100 dBm)
Input/Output Return Loss:
>15 dB (400 ~ 3800 MHz)
>14 dB (3800 ~ 6000 MHz)
>13 dB (6000 ~ 7300 MHz)
Port to Port Isolation: >110 dB
Residual Loopback EVM:
Power In/Out: -10 dBm
Averaged Over: 20 packets
Measured at: 6905 MHz
802.11be, 320 MHz, MCS 13
≤-50 dB
Note: Output power can be lower than -130 dBm
