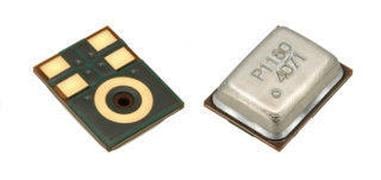

Knowles SPH0641LU4H-1 シリコンMEMSマイクロフォン DIG MEMsマイク、BP、マルチモード、超音波
生産者: Knowles Model: SPH0641LU4H-1 - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Depth: 0.98 mm
Shape: Rectangular
Width: 2.65 mm
Length: 3.5 mm
Port Type: Bottom
Tolerance: 1 dB
Technology: MEMS
Output Type: Digital
Sensitivity: - 26 dB
Unit Weight: 77 mg
Mounting Style: SMD/SMT
Frequency Range: 10 Hz to 80 kHz
Termination Style: SMD/SMT
Sound Pressure Level: 120 dB
Directional Properties: Omnidirectional
Operating Supply Current: 620 uA
Operating Supply Voltage: 3.6 V
SNR - Signal to Noise Ratio: 64.3 dB
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
