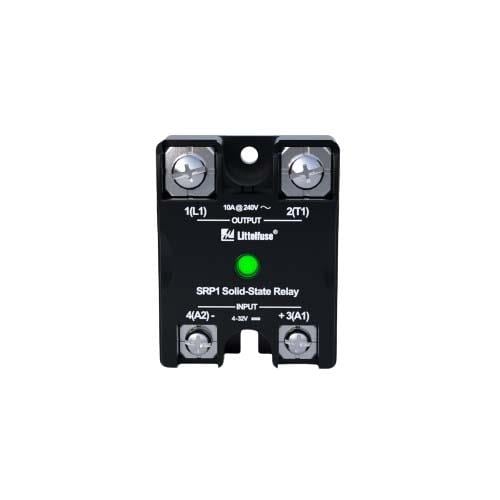

Littelfuse SRP1-CBDZL-010NF-N 高耐久ソリッドステートリレー SSR PNL FO、1X10A/240VAC ZC、DC入力、IP00
生産者: Littelfuse Model: SRP1-CBDZL-010NF-N - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Width: 44.9 mm
Height: 23.27 mm
Length: 57.6 mm
IP Rating: IP00
Input Current: 7 mA to 12 mA
Mounting Style: Panel Mount
Termination Style: Screw
Relay Contact Form: SPST-NO
Load Current Rating: 10 A
Load Voltage Rating: 24 VAC to 240 VAC
On Resistance - Max: 6.3 mOhms
Control Voltage Range: 4 VDC to 32 VDC
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 40 C
