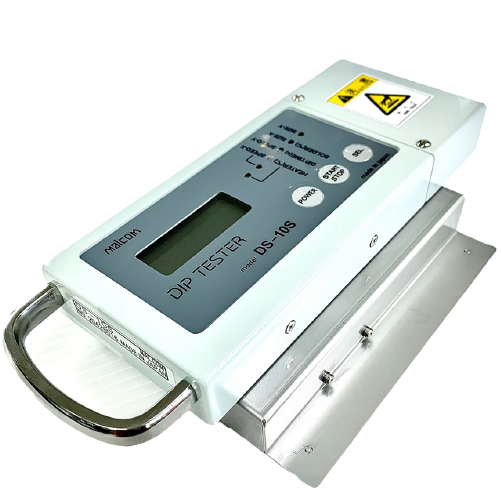

Malcom DS-10S 選択的はんだ付け機用ディップテスター (0~330℃)
生産者: Malcom Model: DS-10S 起源: Japan 品物を保証します: 12 Month - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Ambient temp: 150℃ 5minutes max
External connection: USB (miniB connector)
Number of memory: 1 (Max5 solder stage)
Sampling time: 50ms (fix)
Outer dimensions*weight: 78mm(D)X214mm(W)×43.6mm(H)*820g
Power supply: AAA batteries x2pcs
Items | Sensor | Display | Measurement range | Accuracy |
Solder temp. | K-type shath thermocouple | Degital LCD 3digit | 0~330℃ | ±1℃※ |
PCB lower sarfce temp. | k-type thermo couple | 0~330℃ | ±1℃※ | |
Dip time | Electrode(2pcs.) | 0~10sec. | ||
X,Y axis moving speed | Electrode(8pcs.) | 0~20mm/sec. | ||
X,Y axis solder size | Electrode(8pcs.) Calucurate from the moving speed & contact time to the electrodes | 0~35mm | ±0.2秒 | |
Temp.profile | Preheat・Solder temp. | PC software | 0~330℃ | ±1℃※ |
