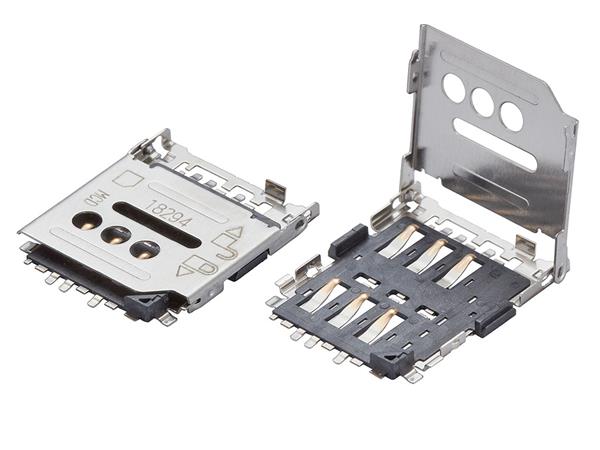

Molex 78800-0001 1.40mm Ht Hngスタイル マイクロSIMカードソケット
生産者: Molex Model: 78800-0001 - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Pitch: 2.54 mm
Height: 1.4 mm
Length: 16.96 mm
Card Type: MicroSIM
Orientation: Vertical
Unit Weight: 1 g
Mating Cycles: 5000 Cycles
Mounting Type: Top
Current Rating: 500 mA
Mounting Style: PCB Mount
Number of Rows: 1 Row
Voltage Rating: 5 VDC
Contact Plating: Gold
Contact Material: Phosphor Bronze
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: SMD/SMT
Number of Contacts: 6 Contact
Flammability Rating: UL 94 V-0
Insertion - Extraction Style: Push-Pull
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 30 C
