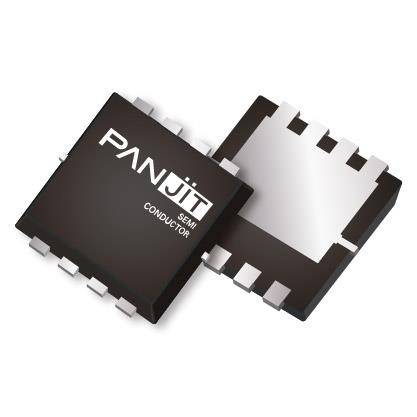

PANJIT PJQ5449E-AU_R2_006A1 MOSFETs 40V Pチャネル 増強型 MOSFET
生産者: PANJIT Model: PJQ5449E-AU_R2_006A1 - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Fall Time: 150 ns
Rise Time: 9 ns
Technology: Si
Unit Weight: 80 mg
Channel Mode: Enhancement
Configuration: Single
Qualification: AEC-Q101
Mounting Style: SMD/SMT
Qg - Gate Charge: 100 nC
Number of Channels: 1 Channel
Transistor Polarity: P-Channel
Pd - Power Dissipation: 107 W
Vgs - Gate-Source Voltage: - 25 V, + 25 V
Typical Turn-On Delay Time: 10 ns
Typical Turn-Off Delay Time: 211 ns
Id - Continuous Drain Current: 100 A
Maximum Operating Temperature: + 175 C
Minimum Operating Temperature: - 55 C
Rds On - Drain-Source Resistance: 6 mOhms
Vds - Drain-Source Breakdown Voltage: 40 V
Vgs th - Gate-Source Threshold Voltage: 2.5 V
