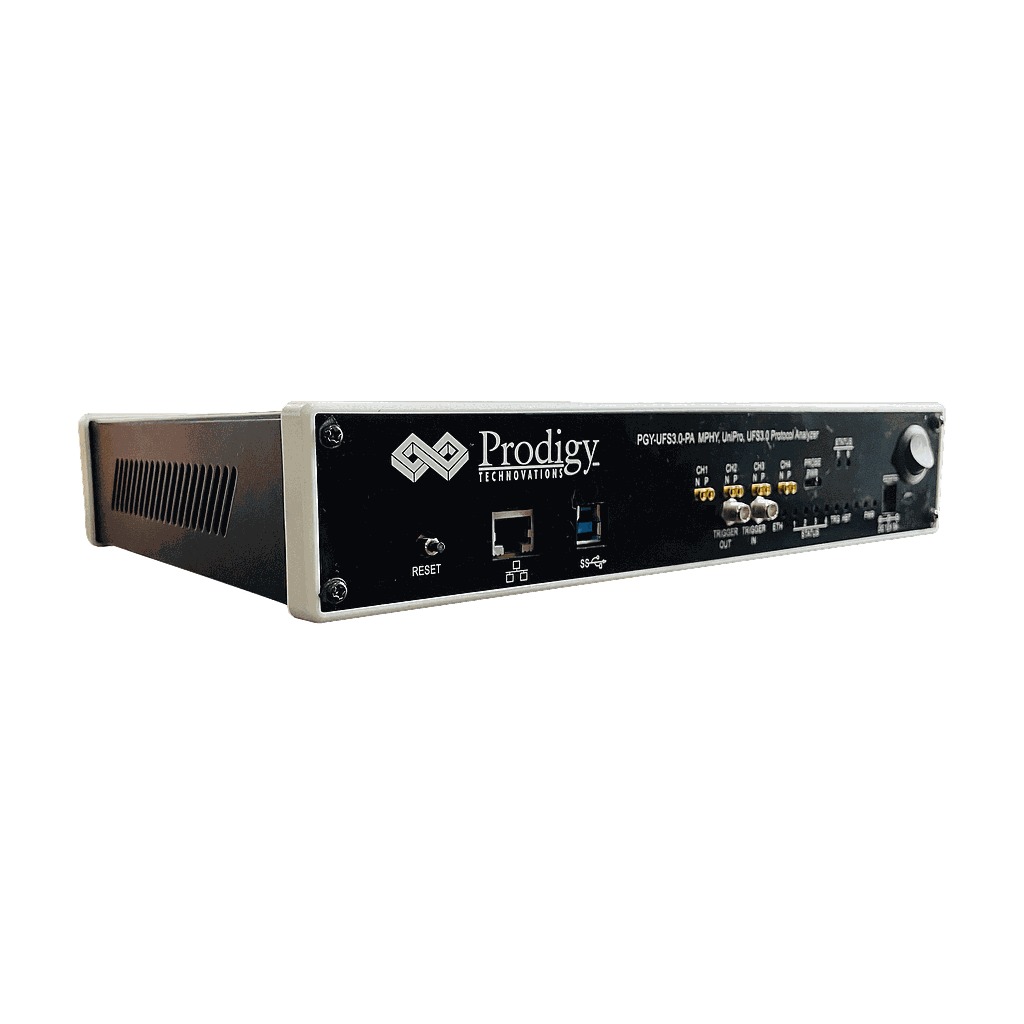

Prodigy Technovations PGY-UFS3.X-PA UFSプロトコルアナライザー

Data Rates Supported: PWM G1 to G7, High Speed Gear 1, Gear 2, Gear 3 and Gear 4, RateA and B

Link width: Configurable for 1TX/1RX or 2TX/2RX

Probes: Solder Down Active Probes

Protocol Decode: MPHY, UniPro and UFS layers

Trace Capture Size: Supports Continuous streaming of Protocol data to Host computerSSD/HDD. Tested for 30GB of Trace depth

Trigger: Based MPHY, UniPro, UFS Packets

Front Panel Connectors: Interface for Active probes. Trigger in/out SMA connectors

Interface for Host Computer: USB3.0 and Gigabit Ethernet interface

Host Computer Requirements: Windows 7/8.0/8.1/10 64bit operating System. It supports aRAMofminimum 8GB but the product would give a faster responsefora16GB. The minimum storage capacity of 1GB should be availableinthe hard disk drive. User can use more storage basedontracestorage requirement. Display resolution of the monitor is 1024X768.Host computer should support USB3.0 or GBe interface.

Dimension: (W x H x D) (20.5X5X25) cms

Weight: Approx. 2.5Kg

Power Requirement: 12V, 3A DC Power Supply (AC/DC Supplied along with Analyzer)
