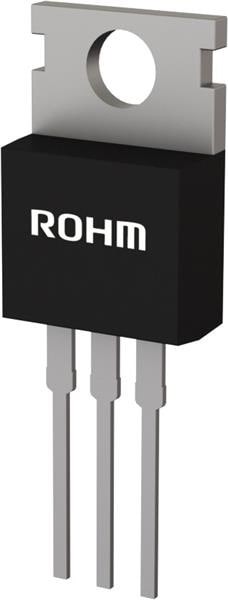

ROHM Semiconductor R6022YNX3C16 MOSFETs Nch 600V 22A、TO-220AB、パワーMOSFET：R6022YNX3は、低オン抵抗のパワーMOSFETで、スイッチングに適しています。
生産者: ROHM Semiconductor Model: R6022YNX3C16 - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Fall Time: 18 ns
Rise Time: 21 ns
Technology: Si
Channel Mode: Enhancement
Configuration: Single
Mounting Style: Through Hole
Transistor Type: 1 N-Channel
Qg - Gate Charge: 33 nC
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Pd - Power Dissipation: 205 W
Vgs - Gate-Source Voltage: - 30 V, + 30 V
Typical Turn-On Delay Time: 27 ns
Typical Turn-Off Delay Time: 54 ns
Id - Continuous Drain Current: 66 A
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 55 C
Rds On - Drain-Source Resistance: 165 mOhms
Vds - Drain-Source Breakdown Voltage: 600 V
Vgs th - Gate-Source Threshold Voltage: 6 V
