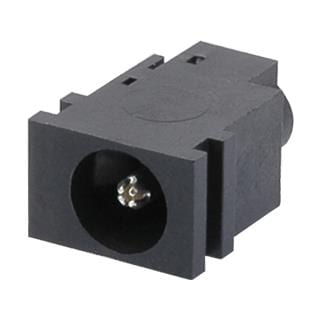

Same Sky (formerly CUI Devices) PJ-042 ジャック 1.65 x 5.15 mm、2.5 A、水平、スルーホール、曲がったピン、DC電源ジャックコネクタ
生産者: Same Sky (formerly CUI Devices) Model: PJ-042 - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Color: Black
Connector Type: Jack
Contact Gender: Pin (Male)
Current Rating: 2.5 A
Mounting Angle: Right Angle
Mounting Style: Through Hole
Voltage Rating: 24 VDC
Contact Plating: Tin
Contact Material: Brass
Housing Material: Polyamide (PA)
Termination Style: Solder
Flammability Rating: UL 94 V-0
Insulation Resistance: 100 MOhms
Inside Contact Diameter: 1.65 mm
Outside Contact Diameter: 5.15 mm
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 25 C
