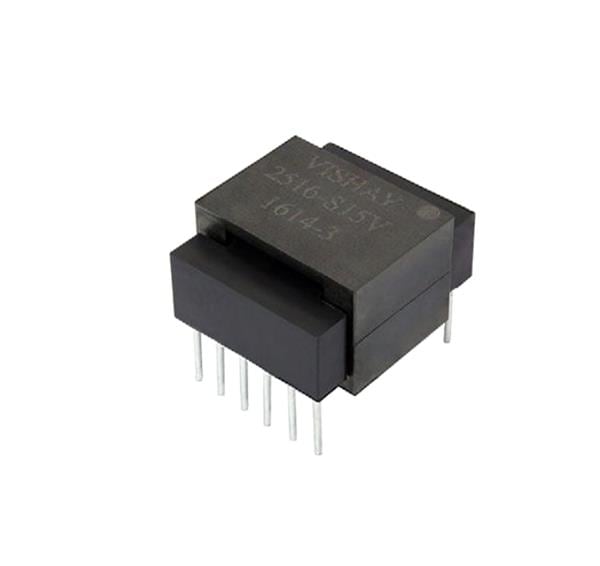

Vishay SGTPL-2516-0001P スペースグレード MAT TRAC、トランス、フライバック、35W、22
生産者: Vishay Model: SGTPL-2516-0001P - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Width: 25.65 mm
Height: 16.51 mm
Length: 29.72 mm
Inductance: 30 uH
Turns Ratio: 7 : 2 : 4.5
Power Rating: 35 W, 150 W
Mounting Style: PCB Mount
Primary Winding: Single Primary Winding
Secondary Winding: Dual Secondary Winding
Termination Style: Through Hole
Operating Frequency: 250 kHz
Primary Voltage Rating: 22 V to 36 V
Secondary Current Rating: 600 mA, 5.5 A
Secondary Voltage Rating: 5 V, 12 V
Maximum Operating Temperature: + 130 C
Minimum Operating Temperature: - 55 C
- 良質な取り決め
- オリジナル保証
- 宅配便
- 買い取り簡単化
