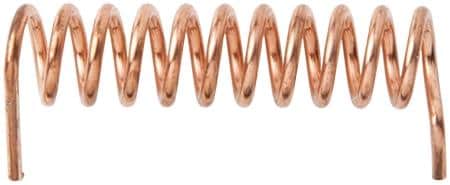

Linx Technologies - TE Connectivity ANT-433-HESM 수동 안테나 SMD 1/4 파장 헬리컬 433MHz
생산업체: Linx Technologies - TE Connectivity Model: ANT-433-HESM - 연락처
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Gain: 1.9 dBi
VSWR: 2
Style: Coil
Length: 38.1 mm
Diameter: 6.35 mm
Bandwidth: 40 MHz
Impedance: 50 Ohms
Wavelength: 1/4 Wave
Application: ISM, Remote Control, Alarms, Security Systems
Unit Weight: 3.862 g
For Use With: 450 MHz, LTE Band 72, LTE Band 73, Personal Mobile Radio - PMR
Polarization: Linear
Mounting Style: PCB Mount
Electrical Type: Embedded Monopole
Number of Bands: 1 Band
Center Frequency: 433 MHz
Mechanical Style: Helical
Ground Plane Size: 58 mm x 88 mm
Maximum Frequency: 458 MHz
Minimum Frequency: 418 MHz
Termination Style: Through Hole
Protocol - Sub GHz: ISM
Protocol - WiFi - 802.11: LoRaWAN, WiFi, WLAN
Maximum Operating Temperature: + 80 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM
