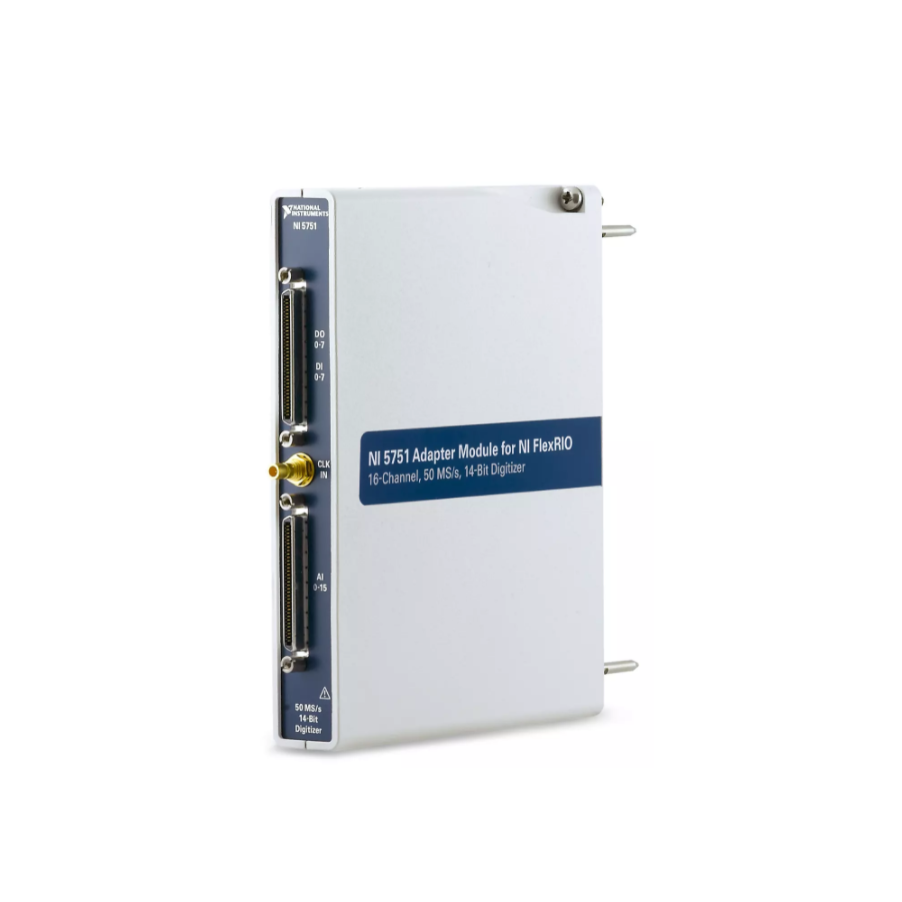

NI NI-5751 Digitizer Adapter Module for FlexRIO (16 Channels, 50 MS/s, DC, Virtex-5 Kintex-7)
생산업체: NI Model: NI-5751 P/N: 781356-01 - 연락처
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Number of Voltage Input Channels: 16
Maximum Sample Rate: 50 MS/s
Analog Input Resolution: 14 bits
Analog Input Coupling: DC
Analog Input Bandwidth: 26 MHz
Analog Input Voltage Range: -1 V to 1 V
Compatible FPGA: Virtex-5
Provides high‐speed analog I/O to digitize signals from your transducer with a PXI FPGA Module for FlexRIO or the Controller for FlexRIO.
Digitizer Adapter Modules for FlexRIO can be used with a PXI FPGA Module for FlexRIO or the Controller for FlexRIO to create a high‐performance instrument with customizable firmware. With sampling rates from 40 MS/s to 3 GS/s and up to 32 channels, these modules cover a wide range of requirements for both time- and frequency‐domain applications. Digitizer adapter modules also provide digital I/O capability for interfacing with external hardware.
Datasheet
