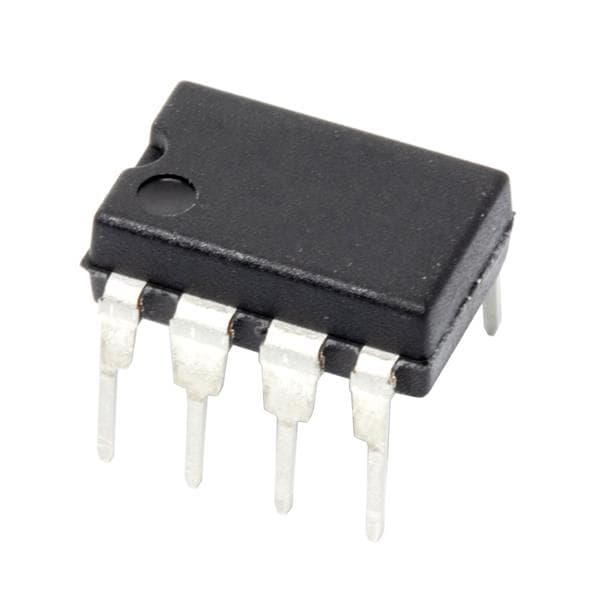

Analog Devices LT1490ACN8#PBF 运算放大器 2x 超顶级 uP R2R 输入输出运算放大器

Gain V/V: 1500 V/mV

Shutdown: No Shutdown

Input Type: Rail-to-Rail

Output Type: Rail-to-Rail

Unit Weight: 1.005 g

Amplifier Type: Micropower

Mounting Style: Through Hole

SR - Slew Rate: 60 mV/us

Number of Channels: 2 Channel

Supply Voltage - Max: 44 V

Supply Voltage - Min: 2 V

Ib - Input Bias Current: 1 nA

Operating Supply Current: 40 uA

Ios - Input Offset Current: 800 pA

Output Current per Channel: 25 mA

Vos - Input Offset Voltage: 110 uV

GBP - Gain Bandwidth Product: 180 kHz

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C

In - Input Noise Current Density: 0.015 pA/sqrt Hz

en - Input Voltage Noise Density: 50 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 98 dB

PSRR - Power Supply Rejection Ratio: 98 dB
