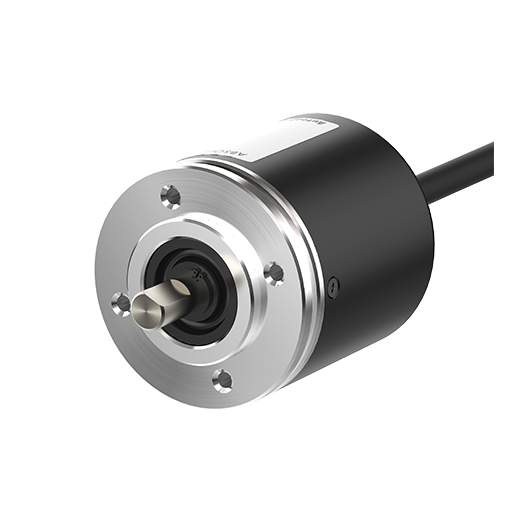

Autonics EP50S8-20-3F-N-24 50mm单圈绝对旋转编码器(轴型) (12-24VDC, 20P/R, Ø8mm, CW)

Shaft outer diameter : Ø8mm

Max. response frequency : 35kHz

Max. allowable revolution : 3000rpm

Starting torque : Max. 70gf.cm(max. 0.0069N.m)

Resolution : 20P/R

Rotating direction : CW

Control output : NPN open collector

Power supply : 12-24VDC  ±5%(ripple P-P: max. 5%)

Connection type : Axial cable type

Protection structure : IP65(IEC standard)

Details

Datasheet
