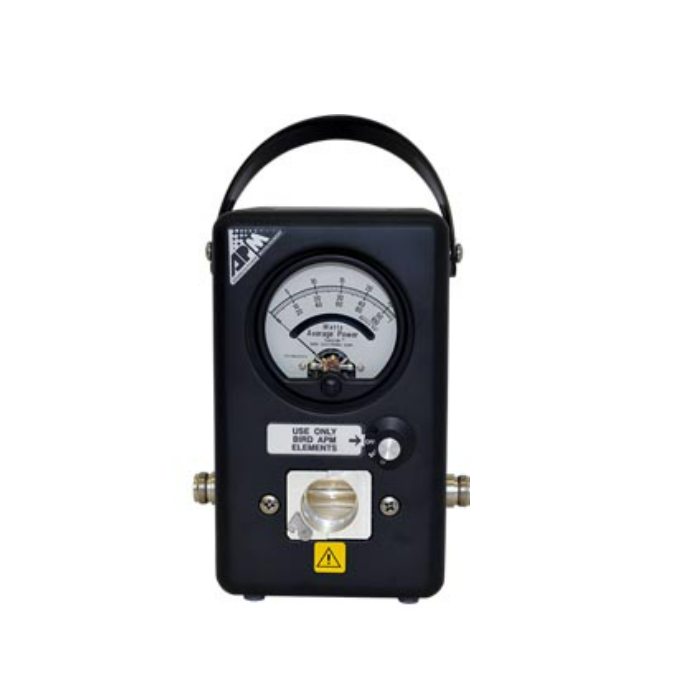

Bird APM-16 射频功率计 (1 W ~ 1000 W)

Power Range: 1 W to 1000 W

Frequency Range: 2 MHz to 2.3 GHz

Insertion VSWR: with N Connectors 1.05 max. to 1000 MHz

Accuracy:

      10°C to 35°C ± 4% reading, ± 1% full scale

      -20°C to 50°C ± 6% reading, ± 2% full scale

Humidity: 95% ± 5% max. (non-condensing)

Connectors: QC Type

Battery: 9-Volt

Operating Temperature: -20 °C to 50 °C (-4 °F to 122 °F)

Storage Temperature: -25 °C to 65 °C (-13 °F to 149 °F)

Finish: Gray Powder Coat

Dimensions(H x W x D): with connectors 6.88 in x 5.13 in x 3.63 in/ 175 mm x 130 mm x 92 mm

Weight: 3 lbs. (1.4 kg)

Manual
