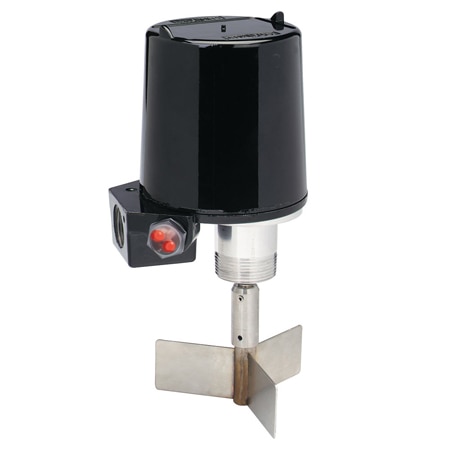

Dwyer PLS-W-S-1-3-0-0-0 桨式液位开关，1转/分钟电机，1-1/4英寸NPT，适用于散装物料 (NPT Male PDL-3 Paddle, 1 1/4 in, 120 Vac)

Weight: 4 lb

Options: TDRelay HTConstruction Tmount SaftExtentions-Shields Flex Coupling V RevL

Materials: Aluminum

Compliance: cUL

Switch Type: SPDT NO/NC, Selectable

Weight Note: Control head only

Pressure Type: Gauge

Switch Rating: 15 A @ 120 Vac

LED Indicators: Red LED that Activates when Switch is made or when Switch is not made with RL option

Supply Voltage: 120 Vac

Compliance Note: cUL approved as an auxiliary device or as an auxiliary device for hazardous locations

Pressure Limits: Up to 30 psi

Temperature Note: Standard construction: Process: -40 to 300°F (-40 to 148.9°C); Ambient: -40 to 185°F (-40 to 85°C); High temperature option: Process: -40 to 500°F (-40 to 260°C); Ambient: -40 to 185°F (-40 to 85°C).

Enclosure Ratings: IP66, NEMA Type 4X

Materials, Wetted: Aluminum, Carbon Steel, PTFE, Stainless Steel

Power Consumption: 5 W

Supply Power Type: AC

Media Compatibility: Cement Powder, Dry Powder, Flour

Additional Features 1: Includes PDL-3 Paddle

Electrical Connection: 3/4 in NPT female Conduit with Screw Terminal block

Process Connection Size: 1 1/4 in

Process Connection Type: NPT Male PDL-3 Paddle

Process Temperature, Max: 300 °F

Process Temperature, Min: -40 °F

Operating Temperature, Max: 185 °F

Operating Temperature, Min: -40 °F
