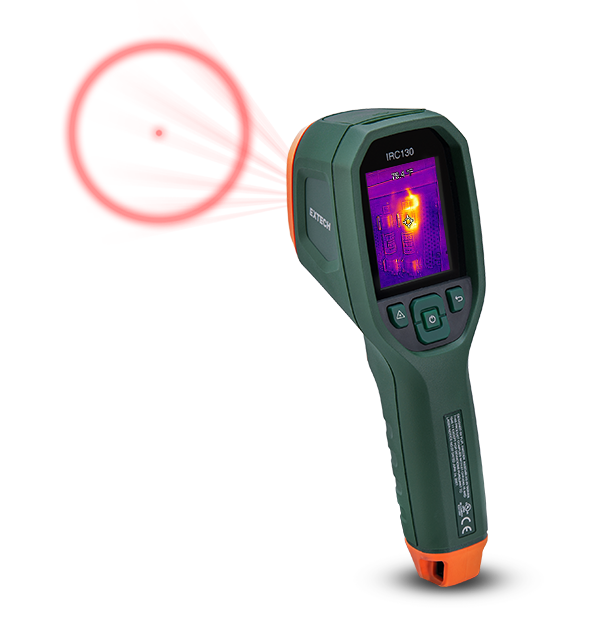

EXTECH IRC130 迷你红外线温度计 (-25 ~ 650°C; 80 x 60 (4800 pixel); < 70 mK)

Specifications

Temperature range: -13 to 1202°F (-25 to 650°C)

Basic accuracy: ±1% of reading or ±1°C (2°F), whichever is greater

Image storage capacity: 50,000 JPEG images (with spot temperature metadata tag)

Emissivity: 0.10 to 0.99 (adjustable) and 3 presets

Response time: 150 ms

Imaging and Optical Specifications

IR Resolution: 80 x 60 (4800 pixels)

Digital Camera Resolution:  2 MP (megapixels)

Thermal Sensitivity /NETD:  < 70 mK

Field of View (FOV):  51° x 66 (H x W)°

Minimum focus distance:  0.3 m (0.89 ft.)

Distance to Target:  30:1

Dual range operation :  Range 1: < 752°F (400°C); Range 2: > 752°F (400°C) - For Range 2, the high temperature lever must be engaged

Focus:  Fixed

Image frequency:  8.7 Hz

Focal plane array/Spectral response range:  Uncooled microbolometer/7.5 ~ 14 μm

Image Presentation Specifications

Display resolution:  320 x 240 pixels

Screen size:  2.4" (61 mm) - portrait

Viewing angle:  80°

Display type:  TFT technology

Image modes:  Visual and Visual/Thermal MSX (Multi-Spectral Dynamic) images

Color display palettes:  Iron, Rainbow, White-hot, Black-hot, Arctic, and Lava

Image gallery:  Yes

Additional Information

IP rating:  IP54 (IEC 60529)

Drop tested:  ~6.5 ft (2 m)

Accessory mount:  UNC 1/4"-20

Power:  Internal rechargeable battery (3.6 V Lithium Ion)

Dimensions/Weight:  8.3 x 2.5 x 3.2" (210 x 64 x 81 mm)/13.9 oz (394 g)

Details

Datasheet
