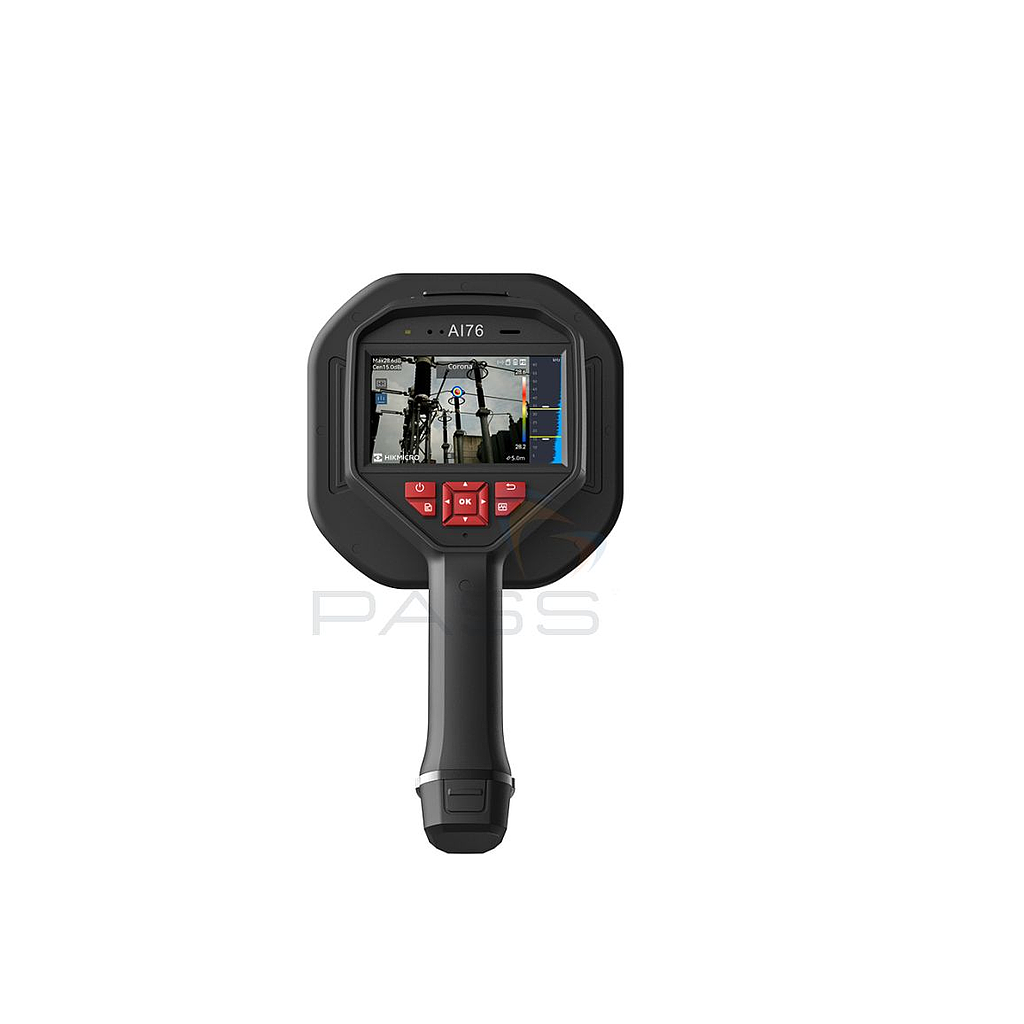

HIKMICRO AI76 声学成像相机 (0 kHz ~ 96 kHz, 136 Microphones)

Acoustic

Number of Microphones: 136

Acoustic Image Resolution: 800 × 480

Bandwidth: 0 kHz to 96 kHz, adjustable range MEMS sampling frequency: 192 kHz

Distance: 0.3m~150m

Acoustic Image Palette: White Black, Black White, Rainbow, Fusion, Ironbow, Red Black, Rain, Blue Red

Camera: FOV 50.2°× 35.4°

Sound Intensity Display: Peak Point

Acoustic Image Frame Rate: 25 fps

Dynamic Range

Low Limit: <-15dB

High Limit: >120dB

Leak Rate

>0.0047 l/min @ 6 bar from 0.5 m (1.64 ft)

>0.0073 l/min @ 5 bar from 1 m (3.28 ft)

Discharge Detection: Automatic detection 50 / 60 Hz

Discharge Type: Corona Discharge, Particle Discharge, Floating Discharge, Surface Discharge

Image Display

Display: 800 × 480 Resolution, 4.3’LCD Touch Screen

Screen Brightness: Manual/Auto

Digital Zoom: 1.0x to 16.0x continuous

Data Storage and Communication

Storage Media: Removable 64 GB SD Card

Image Storage Capacity: 18000 images

Annotations: Voice note: max. 60 seconds; Text note: max. 255 characters

Video Storage Capacity: 60 hours

Video File Format: MP4

General

Wi-Fi: 802.11 b/g/n (2.4 GHz and 5 GHz)

Bluetooth: Bluetooth 4.1

USB Interface: USB Type-C

HDMI Interface: HDMI-D

Battery Operating Time: Approx. 2 hours

Battery Type: Dismountable and Rechargeable Li-ion Battery

Battery Charging Time: 5 hours to full charge

Protection level: IP54

Power Supply: 5V DC/2A (Charging via USB)

Drop Test Height: 1.2 m (3.94 ft)

Safety: IEC 61010-1

EMC: EN 301 489-1,EN 301 489-17,EN IEC 61000-6-2,EN IEC 61000-6-3,EN 61326-1

Working Temperature Range: -20 °C to 50 °C (-4 °F to 122 °F)

Storage Temperature Range: -20 °C to 60 °C (-4 °F to 140 °F)

Relative Humidity: <95 % non-condensing

Weight Approx.: 1200 g (2.64 lb)

Dimension: 310.4mm×165mm×117mm (12.22 × 6.49 × 4.61 in)

Tripod Mounting: UNC ¼”-20
