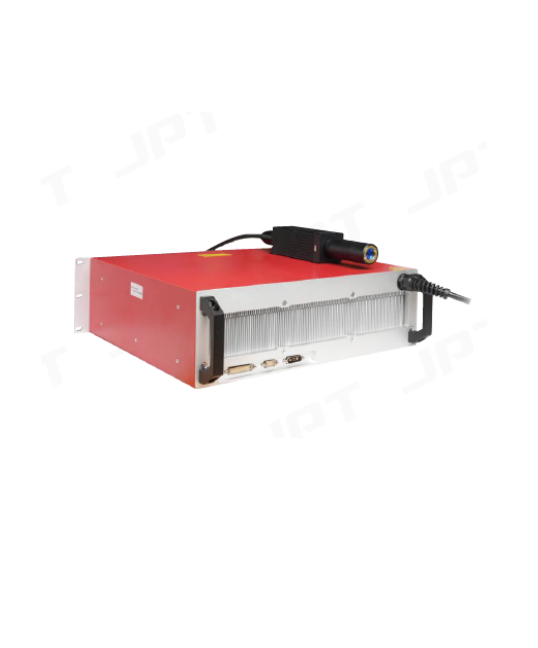

JPT YDFLP-E2-200-M7-M-R Mopa光纤激光器 (>200W/ 1.5mJ/ 1-4000kHz)
制造商: JPT Model: YDFLP-E2-200-M7-M-R - 联系
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
M²: <1.6
Armored Cable Length (m): 5
Nominal Average Output Power (W): >200
Maximum Pulse Energy (mJ): 1.5
Pulse Repetition Rate Range (kHz): 1 ~ 4000
Pulse Duration (ns): 2 ~ 500
Output Power Stability (%): <5
Cooling Method: Air Cooled
Supply DC Voltage (VDC) (V): 48
Maximum Power Consumption (W): <830
Environmental Supply Current (A): >14.6
Central Emission Wavelength (nm): 1064
Emission Bandwidth @3dB (nm): <15
Polarization Orientation: Arbitrary
Anti-high Reflection: Yes
Output Beam Diameter (nm): 7.0±1.0
Output Power Tuning Range (%): 0 ~ 100
Operation Temperature (℃): 0 ~ 40
Storage Temperature (℃): -10 ~ 60
Net Weight: 10.5 kg
Size(L×W×H): 340×265×100 mm
