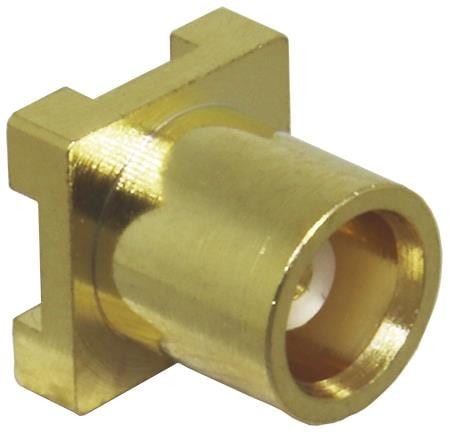

Linx Technologies - TE Connectivity CONMCX001-SMD-T PCB连接器 MCX插孔 50欧姆 PCB表面贴装
制造商: Linx Technologies - TE Connectivity Model: CONMCX001-SMD-T - 联系
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Gender: Jack (Socket)
Polarity: Standard
Frequency: 0 Hz to 6 GHz
Impedance: 50 Ohms
RF Series: MCX
Body Style: Vertical PCB Mount
Body Finish: Gold
Orientation: Straight
Unit Weight: 600 mg
Contact Type: Coaxial
Body Material: Brass
Mating Cycles: 500 Cycles
Insertion Loss: 0.1 dB
Mounting Style: PCB Mount
Voltage Rating: 1 kVAC
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 6 GHz
Minimum Frequency: DC
Termination Style: Solder
Coupling Mechanism: Threaded
Contact Termination: Solder
Insulation Resistance: 750 MOhms
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
