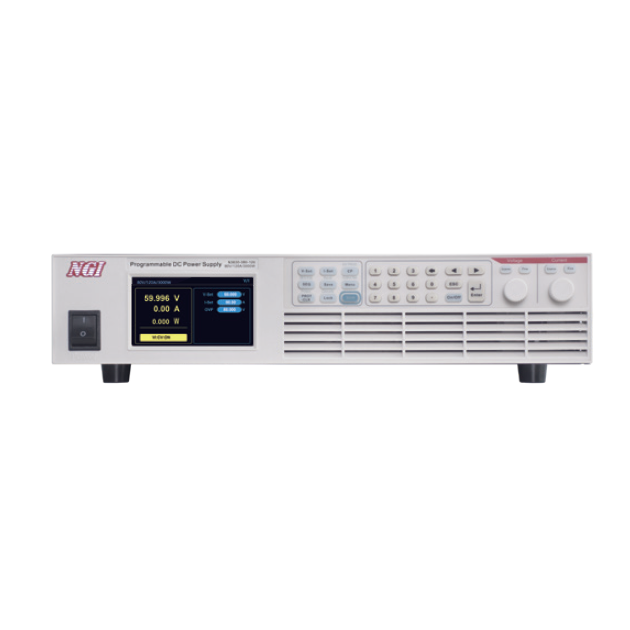

NGI N3608-080-060 宽范围可编程直流电源 (0~80V, 0~60A, 800W)

Voltage: 0~80V

Current: 0~60A

Power: 800W

CV Mode

Range: 0~80V

Setting Resolution: 1mV

Setting Accuracy (23±5℃): 0.05%+0.05%F.S

CC Mode

Range: 0~60A

Setting Resolution: 1mA

Setting Accuracy (23±5℃): 0.1%+0.1%F.S

Voltage measurement

Range: 0~80V

Readback Resolution: 1mV

Readback Accuracy (23±5℃): 0.05%+0.05%F.S

Temperature Coefficient: 50ppm/℃

Current Measurement

Range: 0~60A

Readback Resolution: 1mA

Readback Accuracy (23±5℃): 0.1%+0.1%F.S

Temperature Coefficient: 50ppm/℃

Line Regulation

Voltage: ≤0.01%

Current: ≤0.05%

Load Regulation

Voltage: ≤0.05%

Current: ≤0.05%

Output Ripple(20Hz-20MHz)

Voltage Ripple (p-p): ≤300mVp-p

Efficiency: 90% (Typical)

Interface: RS232/LAN

Communication Response Time: ≤5ms

AC Input: Single phase, 220V AC±10%, current ≤16A, frequency 47Hz~63Hz

Temperature: Operating Environment:  Altitude <2000m, relative humidity: 5%~90%RH(non-condensing), atmospheric pressure: 80~110kPa

Net Weight: Approx. 15.5kg

Dimension: 2U, 88.0(H)*482.0(W)with handle*550.0(D)mm
