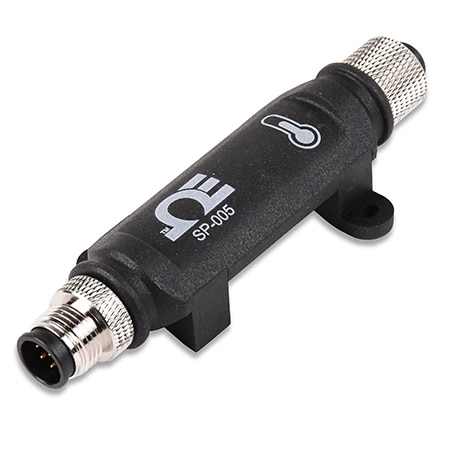

OMEGA SP-005-1 Omega Link M12 模块化热电偶和RTD温度智能探头 (Temperature)
制造商: OMEGA Model: SP-005-1 - 联系
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Width: 22.1 mm
Accuracy: ± 0.3 °C
Software: Compatible with OEG, SYNC, and OMEGA Cloud
Approvals: CE, UKCA
Configuration: Configurable via Omega Link Smart Interface and SYNC configuration software
Digital Input: VinHighThreshold = 2.2 VMAX, VinLowThreshold = 0.3 VMIN, VinMAX = 30 VDC
Number of I/O: 2
Digital Output: 2x Open Drain 100 mA max, VMAX = 30 VDC
Supply Voltage: 2.8 to 3.3 Vdc
Measurement Type: Temperature
Enclosure Ratings: IP67
Supply Power Type: DC
Number of Channels: 2
Process Temperature Note: Thermocouple: J: -210°C to 1200°C, K: -160°C to 1372°C, T: -190°C to 400°C, E: -200°C to 1000°C, N :-100°C to 1300°C, R: 40°C to 1788°C, S: 100°C to 1768°C, B: 640°C to 1820°C, C: 0°C to 2320°C RTD: 385: -200°C to 850°C, 392: -200°C to 660°C
Process Temperature, Max: 1372 °C
Process Temperature, Min: -160 °C
Operating Temperature, Max: 85 °C
Operating Temperature, Min: -40 °C
