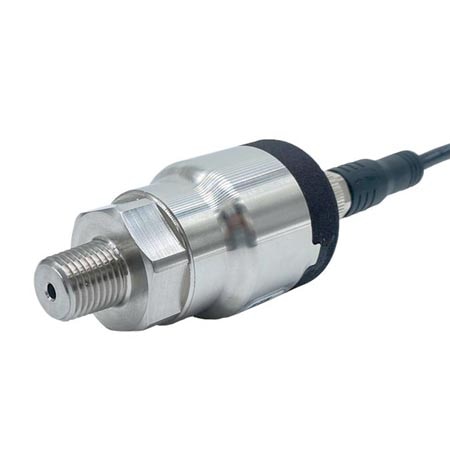

OMEGA SP-006-1-C-050A SP-006系列智能压力探头 (Pressure, 50 psi, Absolute)
制造商: OMEGA Model: SP-006-1-C-050A - 联系
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Accuracy: ± 0.5 %
Software: Compatible with Omega Enterprise Gateway and SYNC configuration software
Approvals: CE, UKCA
Configuration: Configurable via Omega Link Smart Interface and SYNC configuration software
Digital Input: VinHighThreshold = 2.2 VMAX, VinLowThreshold = 0.3 VMIN, VinMAX = 30 VDC
Number of I/O: 2
Pressure Type: Absolute
Pressure, Max: 50 psi
Pressure, Min: 0 psi
Burst Pressure: 500 psi Maximum
Data Interface: USB, Modbus, Wireless
Digital Output: 2x Open Drain 100 mA max, VMAX = 30 VDC
Supply Voltage: 2.8 to 3.3 Vdc
Measurement Type: Pressure
Enclosure Ratings: IP50
Relative Humidity: 95% RH, non-condensing
Supply Power Type: DC
Number of Channels: 1
Pressure Resolution: 0.1
Process Connection Size: 1/4 in
Process Connection Type: NPT Male
Internal Sensor Accuracy: ± 1.5 °C
Process Temperature, Max: 80 °C
Process Temperature, Min: -10 °C
Operating Temperature, Max: 85 °C
Operating Temperature, Min: -40 °C
Internal Temperature Resolution: 0.1°C
