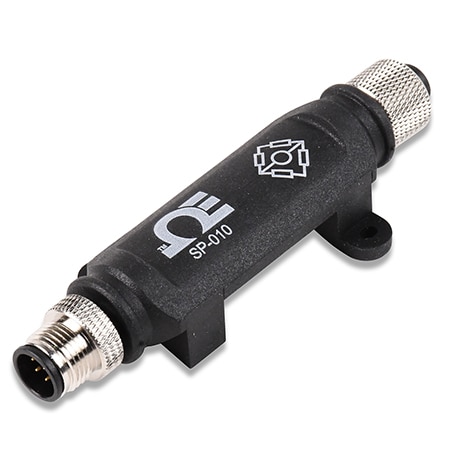

OMEGA SP-010-1 Omega Link M12 模块化智能探头称重传感器接口带输入/输出 (Load Cell)
制造商: OMEGA Model: SP-010-1 - 联系
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Width: 22.1 mm
Length: 96.7 mm
Accuracy: ± 0.03 %
Software: Compatible with OEG, SYNC, and OMEGA Cloud
Approvals: CE, UKCA
Reading Rate: 1 sample per second max
Accuracy Note: Linearity Error: ±0.03% FSO @ 25°C, Thermal Error: ±0.005% FSO/C
Configuration: Configurable via Omega Link Smart Interface and SYNC configuration software
Digital Input: VinHighThreshold = 2.2 VMAX, VinLowThreshold = 0.3 VMIN, VinMAX = 30 VDC
Number of I/O: 2
Digital Output: 2x Open Drain 100 mA max, VMAX = 30 VDC
Supply Voltage: 2.8 to 3.3 Vdc
Measurement Type: Load Cell
Enclosure Ratings: IP67
Supply Power Type: DC
Number of Channels: 1
Operating Temperature, Max: 85 °C
Operating Temperature, Min: -40 °C
