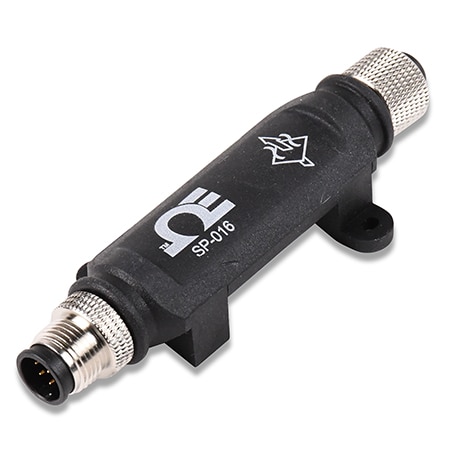

OMEGA SP-016-1 Omega Link M12 模块化智能热通量传感器接口，带输入/输出 (Heat Flux)
制造商: OMEGA Model: SP-016-1 - 联系
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Width: 22.1 mm
Length: 96.7 mm
Accuracy: ± 0.02 %
Software: Compatible with OEG, SYNC, and OMEGA Cloud
Approvals: CE, UKCA
Accuracy Note: ±0.02% or ±4 uV
Configuration: Configurable via Omega Link Smart Interface and SYNC configuration software
Digital Input: VinHighThreshold = 2.2 VMAX, VinLowThreshold = 0.3 VMIN, VinMAX = 30 VDC
Number of I/O: 2
Digital Output: 2x Open Drain 100 mA max, VMAX = 30 VDC
Supply Voltage: 2.8 to 3.3 Vdc
Measurement Type: Heat Flux
Enclosure Ratings: IP67
Supply Power Type: DC
Number of Channels: 2
Input Control Signal: Voltage: ±60 mV
Operating Temperature, Max: 85 °C
Operating Temperature, Min: -40 °C
