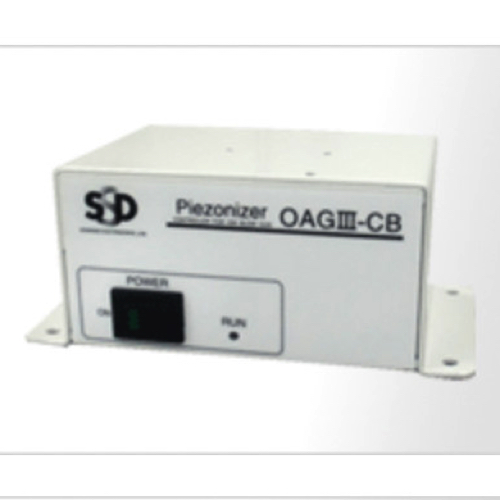

Shishido OAGⅢ-CB ZappⅡ的可选部件(控制器) (DC24V)

Connection products: AGZⅢ or AGZⅢ -OV

Power Supply: DC24V

AGZⅢAC adaptor ( AC100~240V available)

Current: 200mA (Use with AGZⅢ or AGZⅢ -OV)

Display: Green light: When power / air supply is on

Air Supply: Clean and Dry air

Air Pressure Range: 0.05MPa~0.7MPa

Air Consumption: Max. 500ℓ/min (ANR) (Air consumption by air controller)

Air output setting: 1:CONT: continuously blow

2:PULSE Hi: high pulse blow (10Hz)

3:PULSE Lo: low pulse blow (5Hz)*1

External Output

(INPUT): Contact input

WORK:short circut the two INPUT ports

STOP:open the two INPUT ports

Environment: Temperature: Below 0 ∼ 40℃

Humidity: Below 85%RH (no condensation)

Dimension: 135×55×75 mm (W×H×D)No Stand

Weight: Around 490g(Main Unit Controller only)

Accessories: Controller Unit, AC Adaptor conversion cable (2m),

Air-gun conversion cable(0.3m), Ground wiring,

Air tube (3m), Manual,

*1: The life span of the solenoid valve inside the controller is 50 million times ON/OFF.
