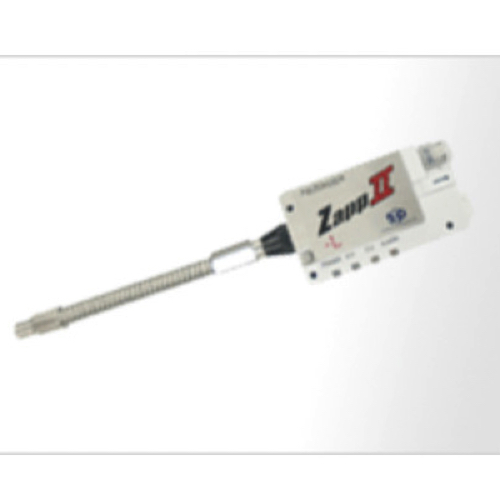

Shishido Zapp Ⅱ-L 超小型压电电离器 (2.4 VA)

Input power supply: DC+24 V ±10%

Electric consumption: 2.4 VA

Output voltage: AC 2,000 V

Discharge method: High Frequency AC Corona discharge method

Ion balance: Below ±15V(Distance at 50mm)

Alarm output: MOS FET Relay, Normally Opened and Closed contact(NO/NC)

Maximum current: 100mA, Voltage: Below 30VDC

Cleaning Check output: MOS FET Relay, Normally Opened contact(NO)(C.C)

Maximum current: 100mA, Voltage: Below 30VDC.

Discharge stop input(HV-OFF): Discharge off: Short circuit to 0V, Discharge on: Open circuit (remained voltage below0.5V)

Supplied Air: Clean Dried Air

Available air pressure: 0.005 ~ 0.1MPa

Airflow supply: Maximum 50 ℓ/min (ANR)

Ozone level: Below 0.1ppm(Supplied air: 30 ℓ/min(ANR) at 50mm) *2

Guaranteed operating temperature: 10 to 40 ℃

Guaranteed operating humidity: 65%RH or less with no condensation

Main unit dimensions: 87×18×50mm (W×H×D) only body size

Weight: Approx 78g

Accompanying items: Manual, Power supply cable(2.5m)

Nozzle is optional.

*2: Under some environment condition, it sometime makes more high level Ozone, we recommend to use ozone-resistant materials around the tip of nozzle.
