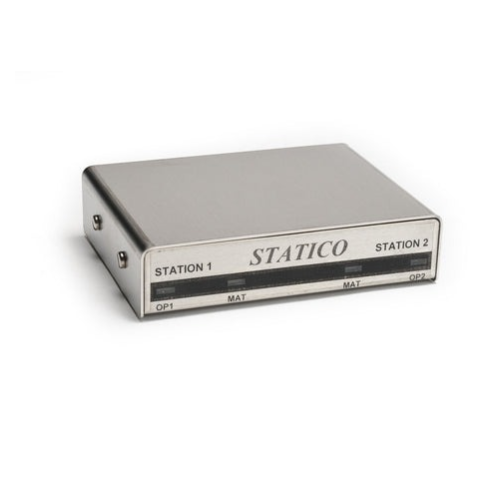

Statico SM2 电阻基座双工作站/腕带监测系统 (Dual)

Wrist-strap resistance alarm limit:

+ Low Alarm <1.8 MOhm series resistance.

+ High Alarm > 10 MOhm or 35 MOhm series resistance.

Maximum wrist-strap operator voltage: 0.9 V under wrist strap open fault conditions.

Mat (Soft Ground) resistance alarm limit:

+ High Alarm > 3.5 MOhm series resistance.

+ Other alarm limits available.

Maximum Mat (Soft Ground) voltage: Less than 1 V even under fault conditions

Tool (Hard Ground) resistance alarm limit: High Alarm > 10 Ohm series resistance. Other alarm limits available.

Maximum Tool (Hard Ground) voltage: Less than 0.05 V even under fault conditions

Maximum Tool (Hard Ground) current: Less than 0.2 ma

Power Supply: 7-12V DC 150 ma
