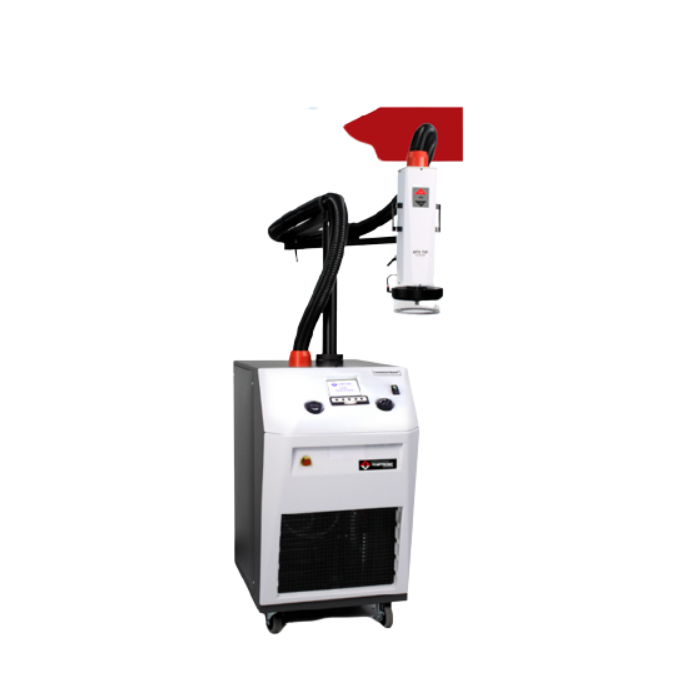

Temptronic ATS-710-WM 半导体零件测温仪 (-75 ~ +225°C)

Description

Advanced Temperature Source for fast and precise thermal conditioning of components, parts, hybrids, modules, subassemblies, and printed circuit boards. Capable of low temperatures without the use of Liquid Nitrogen (LN2) or Liquid Carbon Dioxide (LCO2)

Performance

Temperature Range: -75 ~ +225°C (50Hz), -80 ~ +225°C (60Hz), No LN2 or LCO2 Required

Transition Rates

-55 to +125°C, approx. 10 seconds or less

      125 to -55°C, approx. 10 seconds or less

System Airflow Output: 4 to 18scfm (1.9 to 8.5 l/s) Continuous

Temperature control

Temperature Display & Resolution: +/- 0.1°C

Temperature Accuracy: 1.0°C (when calibrated against NIST standard)

DUT Temperature Control: Proprietary control algorithm enables DUT temperature to be directly controlled

DUT Sensor Ports: Thermocouples (type T & K)

Power: 200 - 250 VAC (230V nominal), 50/60Hz, 30 amp, 1phase

Operating environment

Operating Temperature: +20°C ~ +28°C; +23°C nominal

Humidity: 0 ~ 60%; 45% nominal

Noise Level: <65dBA
