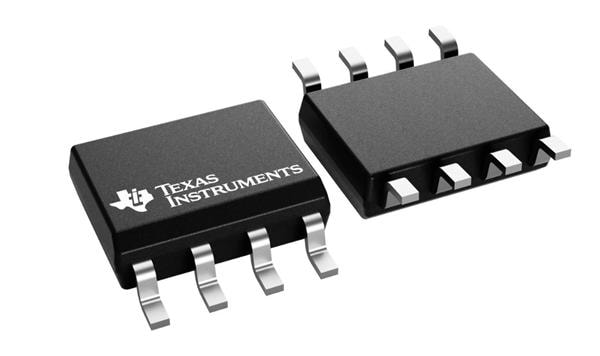

Texas Instruments OPA2131UA 运算放大器 通用 FET输入 运算放大器 A 595-OPA2131UA/2K5

Width: 3.91 mm

Height: 1.58 mm

Length: 4.9 mm

Shutdown: No Shutdown

Input Type: FET

Technology: JFET

Supply Type: Dual

Unit Weight: 76 mg

Amplifier Type: Low Noise Amplifier

Mounting Style: SMD/SMT

SR - Slew Rate: 10 V/us

Voltage Gain dB: 110 dB

Moisture Sensitive: Yes

Number of Channels: 2 Channel

Dual Supply Voltage: +/- 15 V

Supply Voltage - Max: 36 V

Supply Voltage - Min: 9 V

Ib - Input Bias Current: 50 pA

Operating Supply Current: 1.5 mA

Operating Supply Voltage: +/- 4.5 V to +/- 18 V

Vcm - Common Mode Voltage: Negative Rail + 3 V to Positive Rail - 1 V

Output Current per Channel: 25 mA

Vos - Input Offset Voltage: 1 mV

Maximum Dual Supply Voltage: +/- 18 V

Minimum Dual Supply Voltage: +/- 4.5 V

GBP - Gain Bandwidth Product: 4 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C

In - Input Noise Current Density: 0.003 pA/sqrt Hz

en - Input Voltage Noise Density: 15 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 80 dB
