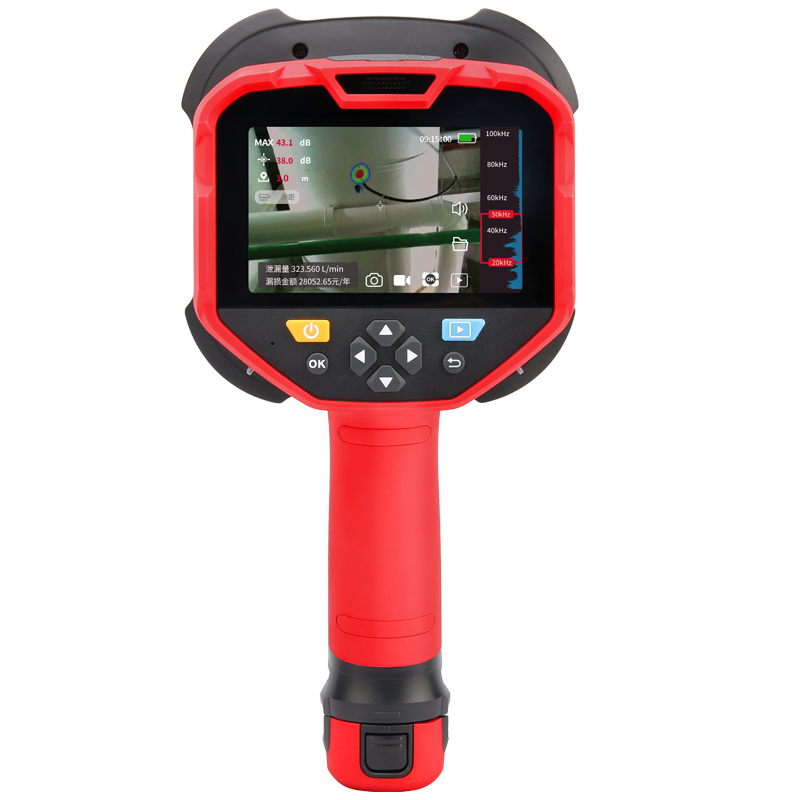

UNI-T UT568B 声学成像相机

Technical Data:

Microphones channels: 138

Microphones type: High sensitivity digital MEMS microphones

Array plane size: Approx. 150mm

Microphones sensitivity:  -26dBFS@1kHz

Sound pressure sensitivity: Lower limit: <20dB  Upper limit: >120dB

SNR(Signal to noise ratio): 64dB@1kHz

Bandwidth: 2kHz~100kHz

Sound sampling rate: 200kHz

Minimum leak rate: >0.15m/s (0.5MPa, 0.5m), >0.2m/s (0.5MPa, 1m)

Detection distance: 0.3~150m

Acoustic imaging frame rate: 25FPS

Display: 4.3″ Touch display screen

FOV: 60°(H) x 40°(V)

Digital camera resolution(pixels): 13MP

Working temperature:  -20~50℃

Functions:

Discharge detection type: Corona, Floating, Surface

Display mode: Single, Multi, Hologram

Threshold adjustment: Flitering background noise

LRF: 30m

Auto enhancement: √

Photo capturing / video recording: √

Wireless connection: Wi-Fi & Bluetooth

Annotation: Text & voice

General Characteristics:

USB: Type-C

Communication interface: Data transmission & report generating

Storage capacity: 128GB SD card

Image format: JPG

Video format: MP4

Audio format: WAV

Languages: ZH,EN

Weight: 1.35kg

Dimension: 163mm×286mm×140mm
