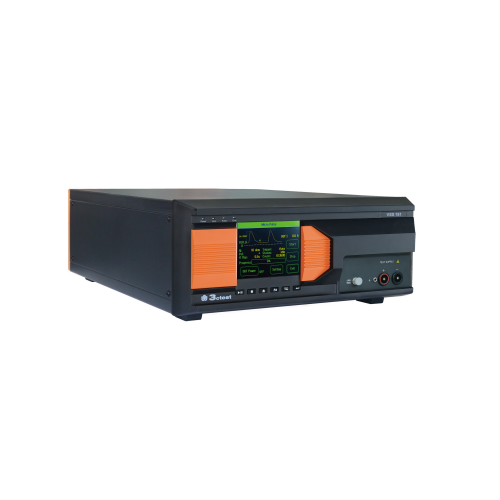

3ctest VSS 181 Spike voltage simulator (30~600V ±5%)
Manufacturer: 3ctest Model: VSS 181 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
- General data:
Display screen: 5.7 inch TFT touch screen
Power supply: AC 110V±10%、220V±10%,50/60Hz (default AC 220V 50Hz)
Fuse: 6A
Max. Power consumption: 300W
Size: 19” / 4U
Weight: Approx. 30Kg
Temperature: 15–35℃
Humidity: 45%–75%
Air pressure: 86kPa–106kPa
- Main parameters:
Test voltage: 30~600V ±5%
Rise time: ≤5us
Voltage duration: 10-50us
Source impedance: 10 ohm ,30 ohm ,50 ohm
Polarity: +/-/alternative
Pulse interval time: LCD display the test values
Voltage, current measurement: 1–9999
Trigger mode: Automatic, manual and external
Protection current: 1 ~ 20A to be set arbitrarily
