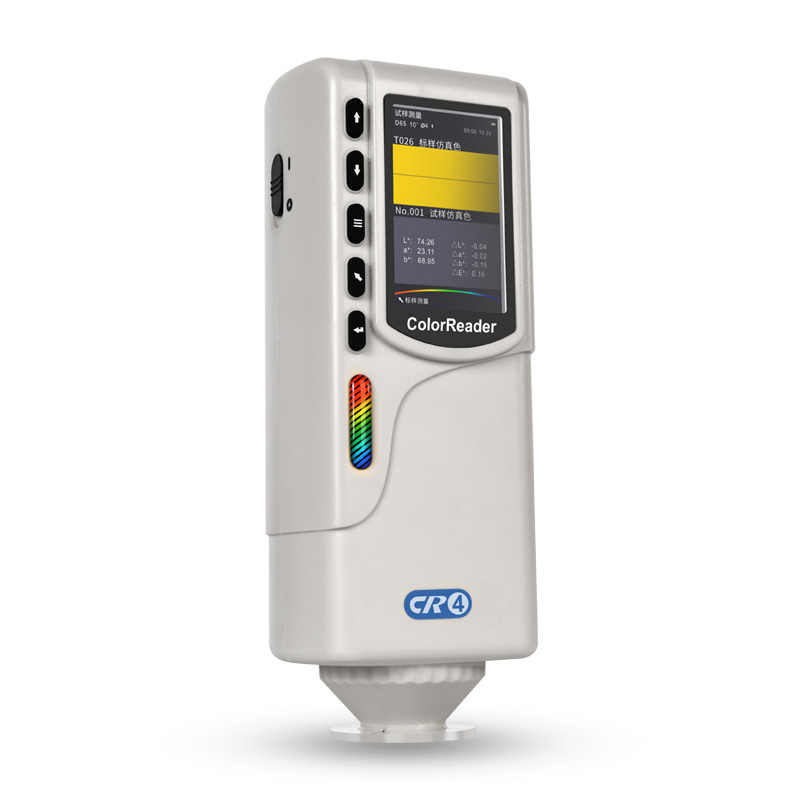

3nh CR4 Color Reader (Industrial Basic)

Integrating sphere size: Φ40mm

Illuminant: 360nm-780nm Combined LED Lamp

Spectroscopic Method: Plane-Grating

Sensor: CMOS sensor

Wavelength Range: 400~700nm

Measuring Aperture: Φ4mm

Color Spaces: CIE LAB LCh

Observer Angle: 10°

Light source: D65

Measuring Time: 1.2s

Repeatability: Chromaticity value: withinΔE*ab 0.1

Dimension: 205X67X80mm

Weight: 500g

Battery: Rechargeable Li-ion battery 3.7V @ 3200mAh

Light source lifespan: 5years more than 1.6 million times measurements

Display screen: TFT true color 2.8inch@ (16:9)

Interface: USB (charge only); Bluetooth 5.0; Button

Language: Chinese, English

Working Temperature range: 0~40℃, 0~85%RH (No condensation), Altitude: lower than 2000m

Storage Temperature range: -20~50℃, 0~85%RH (No condensation)

Standard Accessories: Power adapter, manual, MOBCCS APP software (download from official website Android platform), USB cable, whiteboard box, wrist strap, Φ4mm flat aperture

Optional Accessories: USB mini printer, powder test box
