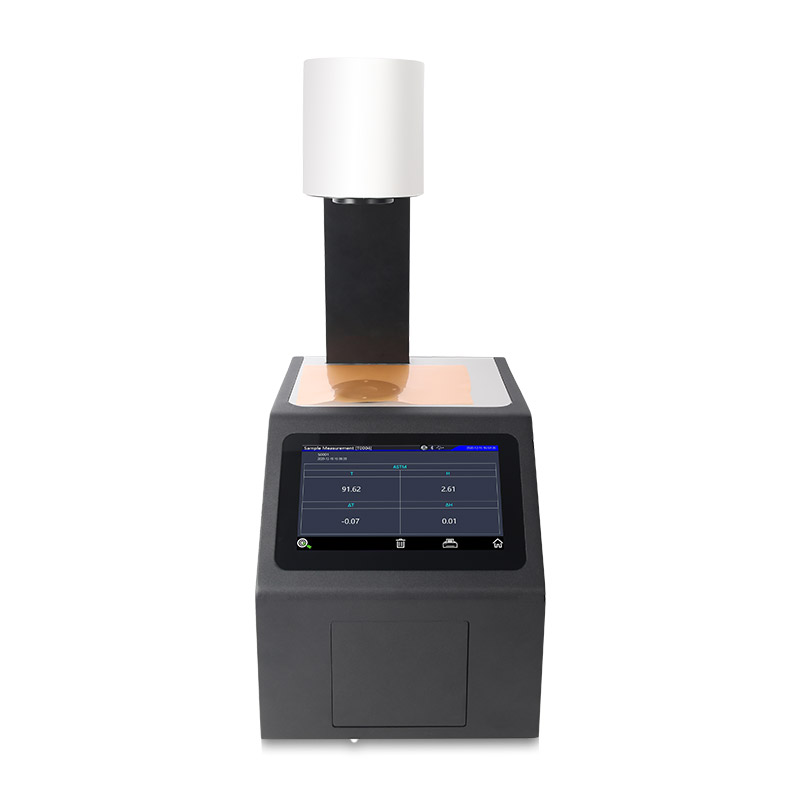

3nh YH1600 Color Haze Meter (Transmittance Rate-ASTM & ISO + Haze-ASTM & ISO + L*a*b*)

- Can measure Transmittance Rate in ASTM and ISO standards + Haze in ASTM and ISO standards + L*a*b*

Integrating sphere size: Φ 154 mm

Light source: 400~700 nm combined LED light source (wavelength extended is customized)

Spectrophotometric Mode: Concave grating

Sensor: 256 pixel dual array CMOS image sensor

Wavelength range: 400~700 nm (wavelength scalable customization)

Wavelength interval: 10 nm

Half bandwidth: 10 nm

Measurement range: 0-100%

Measuring aperture: Φ20 mm/Φ15 mm/Φ8 mm/Φ4 mm (select single aperture)

Sample size: Thickness less than 170 mm

Color space: CIE LAB,XYZ,Yxy,LCh,s-RGB,βxy

Observer angle: 2°/10°

Light source: D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30

Measurement time: About 1.5s

Resolution: 0.01 unit

Dimensions (LxWxH) = 290*211*511 mm

Weight: Approx. 7.6 kg

Power supply: 24V 3A , DCpower adapter

Illuminant Life Span: > 3 million measurements in 5 years

Display: TFT True Color 7 inch, Capacitive Touchscreen

Interface: USB, Print Serial, Bluetooth

Data storage: 5,000 samples, 20,000 samples

Language: Simplified Chinese, Traditional Chinese, English

Operating temperature: 0~40°C (32~104°F)

Storage temperature: - 20~50°C (-4~122°F)

Standard accessories: Power adapter, user manual, quality management software (download), USB cable, 0% calibration box, measuring aperture

Optional accessories: Micro printer, Test Fixture, Standard haze sheet, Footswitch
