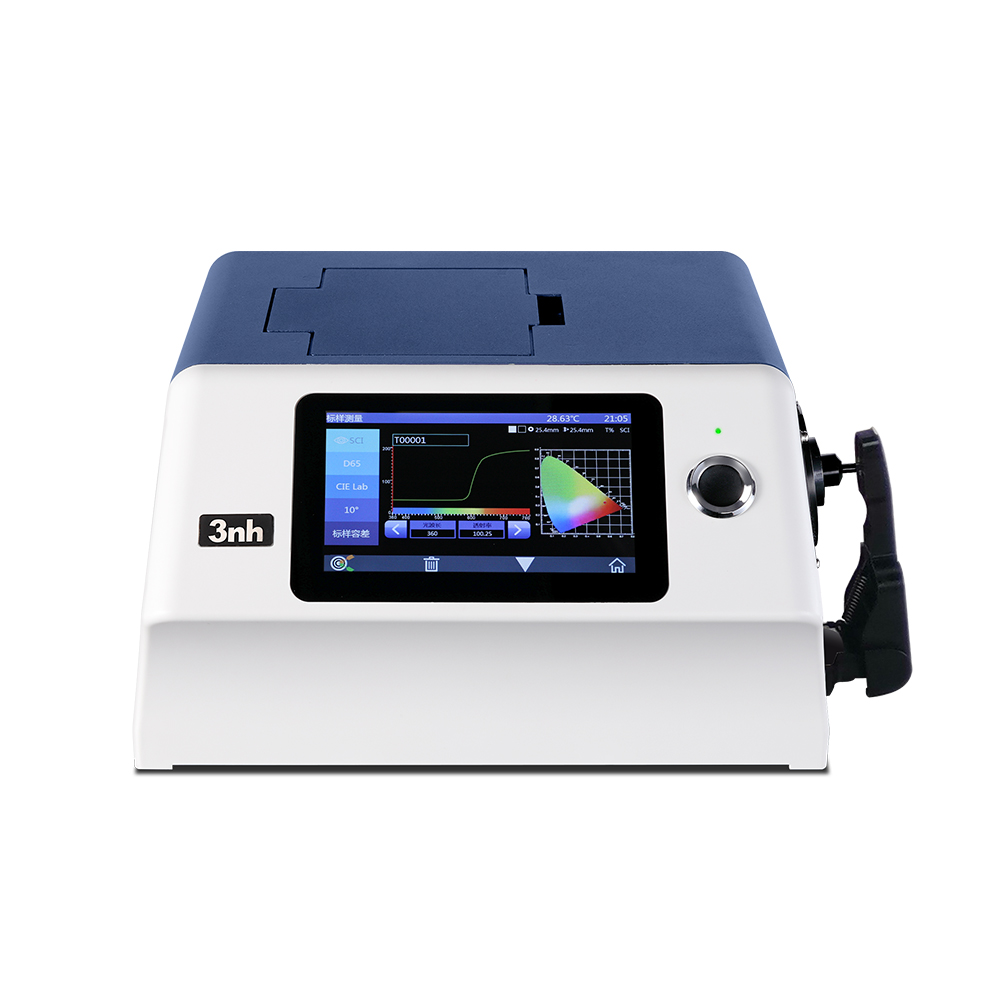

3nh YS6060 Benchtop Grating Spectrophotometer (360 nm~780 nm; 10nm)

Integrating Sphere Size: Φ154mm

Light Source: 360 nm to 780 nm, Combined LED Light, 400nm cut-off light source,420nmCut-off light source

Spectrophotometric Mode: Concave Grating

Sensor: 256 Image Element Double Array CMOS Image Sensor

Wavelength Range: 360-780nm

Wavelength Interval: 10nm

Semiband Width: 10nm

Measured Reflectance Range: 0-200%

Measuring Aperture:

- Reflective : Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm;

- Transmissive : Φ30mm/Φ25mm;

- Remark: 1. Automatic identification of switch caliber   2. Customized Configuration caliber and lens position

Dimension: L*W*H=370x300x200mm

Weight: Approx 9.6kg

Power: AC 24V, 3A Power adapter power supply

Illuminant Life Span: 5 years, more than 3 million times measurements

Displayed Data: 7-inch TFT color LCD, Capacitive Touch Screen

Data Port: USB & Bluetooth & Print serial port

Data Storage: Standard 5000 Pcs, Sample 40000 Pcs

Operating Environment: 0~40℃, 0~85%RH (no condensing), Altitude < 2000m

Storage Environment:  -20~50℃, 0~85%RH (no condensing)
